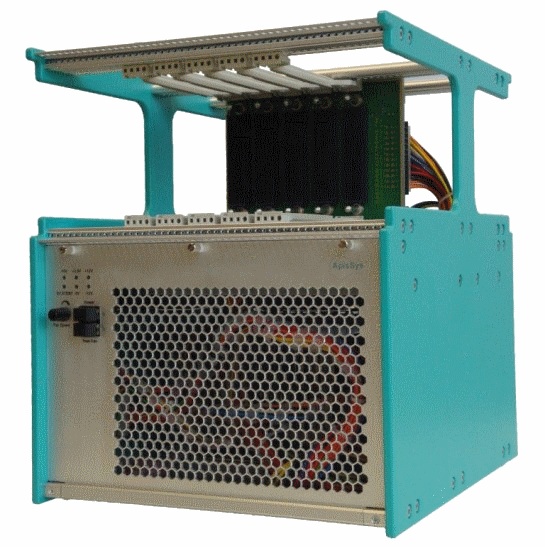

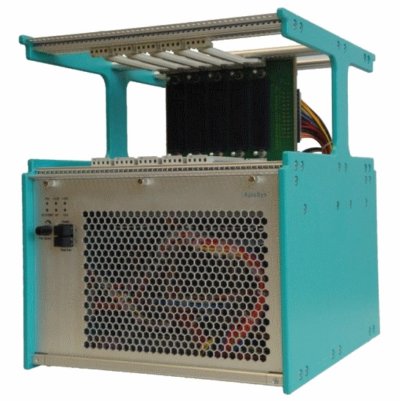

The AC101 is a 3U VPX open frame chassis with a 5 slot, 1″ slotpitch, full Mesh backplane designed for development and test.
The backplane supports Rear Transition Modules (RTM) with access to all VPX P2 signals.
The chassis features a 600 W power supply and strong fans for adequate cooling capabilities.
AC101 - 5 Slots Full MESH 3U VPX Development Chassis
Main features
- 3U VPX form factor
- OpenVPX Compliant
- 5 Slots Full Mesh Backplane with RTM connectors
- 1″ slot pitch to accomodate all board widths
- 600 W power supply delivering:
+12V up to 45 Amps
+5V up to 25 Amps
+3.3V up to 25 Amps
-12V up to 0.8 Amps - Two 224 CFM fans with speed control, on front
- Two 64 CFM fans with speed control, on the rear
