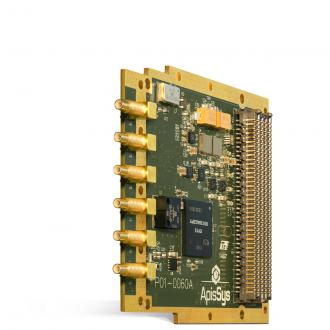

AF204 - Arbitrary Broadband Signal Generation

Main features

  • 1 channel 12-bit, 3 Gsps DAC
  • External clock and reference input
  • Internal low jitter clock generation
  • External trigger input and output
  • VITA 57 FMC form factor
  • Air cooled and Conduction cooled rugged versions
  • FPGA firmware cores
Price request Datasheet

The AF204 provides customers with a single channel 12-bit up to 3 Gsps DAC capability, ideally suited for test and measurement, Software Defined Radio or Radar Transmitter applications.

The AF204 DAC channel is AC coupled with an output bandwidth wider than 5 GHz for a full scale signal of -2 dBm (500 mVpp).
