Time Tagger Series - Streaming time-to-digital converters

Main features

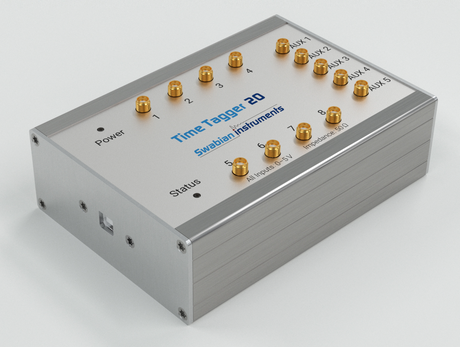

  • Time Tagger 20
    • RMS jitter 34 ps
    • FWHM jitter 80 ps
    • Digital resolution 1 ps
    • 8 Input channels
    • Input Signal 0 to 3V
    • Dead time 6 ns
    • Data transfer rate 8.5 M tags/s
    • Burst memory 8 M tags
    • Maximum input frequency 167 MHz
    • USB 2.0

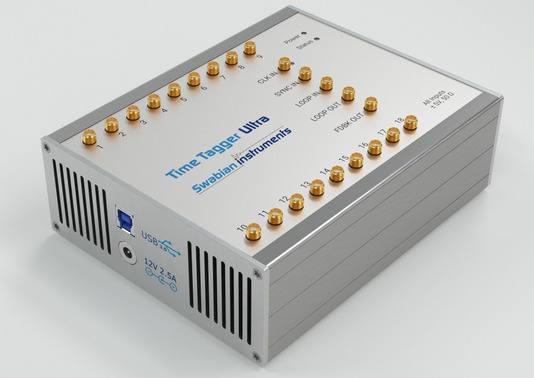

  • Time Tagger Ultra
    • RMS jitter down to 4ps with High resolution option (4 channels)
    • FWHM jitter down to 19ps with High resolution option (4 channels)
    • Digital resolution 1 ps
    • 4 to 18 Input channels
    • Input Signal -3 to 3V
    • Dead time 2.1 ns
    • Data transfer rate 70 M tags/s
    • Burst memory 512 M tags
    • Maximum input frequency 475 MHz
    • External Clock
    • USB 3.0

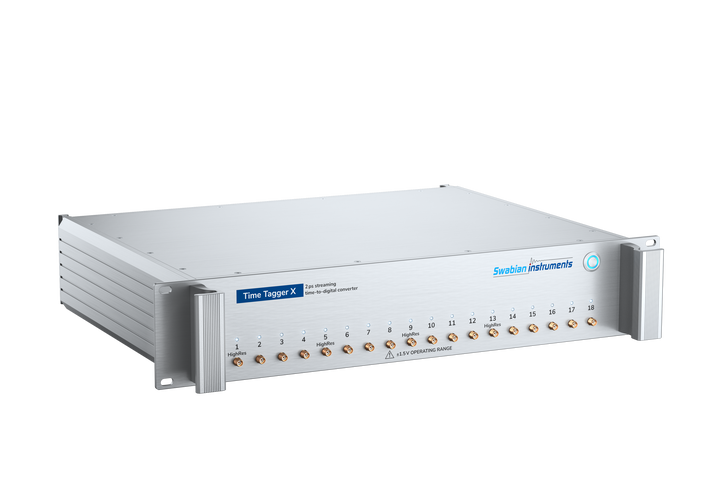

  • Time Tagger X
      • RMS jitter down to 2ps with High resolution option (4 channels)
      • FWHM jitter down to 4.7ps
      • Digital resolution 1 ps
      • 4 to 18 Input channels
      • Input Signal -3 to 3V
      • Dead time 1.5 ns
      • Data transfer rate 300 M tags/s
      • Burst memory 512 M tags
      • Maximum input frequency 700 MHz
      • External Clock
      • USB 3.0 + SFP+



Price request Datasheet Ask a question

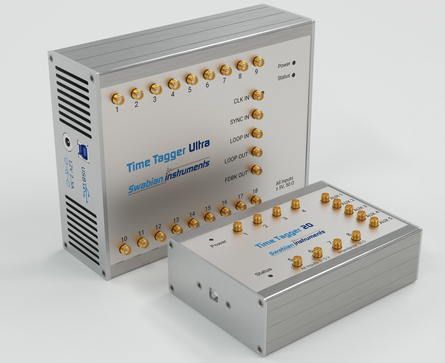

Time Taggers are streaming time-to-digital converters with a unique data processing architecture that makes them the preferred choice for Time-Correlated Single Photon Counting (TCSPC), time-interval counting, coincidence counting, and digital protocol analysis.

Time Taggers are used in a large range of disciplines, including quantum technology, single molecule microscopy, fluorescence correlation spectroscopy, dynamic light scattering, laser ranging, particle physics, and precision time protocol (PTP) testing. Browse the Time Tagger Series’ documentation to find out how a Time Tagger can solve your measurement challenges.

Time Tagger is available in three versions, Moderate count rates with the Time Tagger 20, High count rates with the Time Tagger Ultra and Time tagger X high count rates and high resolution

Time Tagger Ultra and Time Tagger X  can be ehanced up to 144 channels with the Synchronizer option

TT20 - Time Tagger 20

8 channel streaming time tagging system with 34ps resolution (rms jitter), full software package, lifetime software and firmware updates included. Tariff: 903020, Weight: 0.4 kg, 3 year warranty
TTUB-P - Time Tagger Ultra - Performance Edition

Base System, 4 channelstreaming time tagging system with 9 ps time resolution (RMS jitter), USB 3.0, 70 M tags / s, 2.1 ns dead time, +/- 3.3 V input range, +/- 2.5 V trigger level range, synchronizable, full software package, free software and firmware updates included. Tariff: 903020, Weight: 1 kg, 3 year warranty
TTUC-P - Time Tagger Ultra - Performance Edition - Additional Input

9 ps time resolution (RMS jitter), 2.1 ns dead time, +- 3.3V input range, +/- 2.5 V trigger level range.
TTUH-P - Time Tagger Ultra - Performance Edition - High Resolution

4 ps / 2 Channels, 5 ps / 4Channels, 7 ps / 8 Channels (8 channel configuration requires adevice with 8 enabled input channels).

TTUB-V - Time Tagger Ultra - Value Edition

Base System, 4 channel streaming time tagging system with 42 ps time resolution (RMS jitter), USB 3.0, 70 M tags / s, 2.1 ns dead time, +/- 3.3 V inputrange, +/- 2.5 V trigger level range, synchronizable, full software package, free software and firmware updates included. Tariff: 903020, Weight: 1 kg, 3 year warranty
TTUC-V - Time Tagger Ultra - Value Edition - Additional Input

4.2 ps time resolution (RMS jitter), 2.1 ns dead time, +/- 3.3 V input range,+/- 2.5 V trigger level range
TTX-B - Time Tagger

2 ps time resolution (RMS jitter), 1.5 ns dead time, +/- 3.3 V input range,+/- 2.5 V trigger level range
[TTX-C - Time Tagger X

Additional input channels 2 ps time resolution (RMS jitter), 1.5 ns dead time, +/- 3.3 V input range,+/- 2.5 V trigger level range

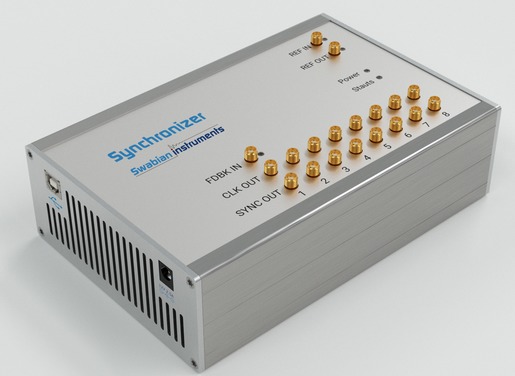

SYNC - Synchronizer

Synchronizer, clocking and synchronization system for up to 8 Time Tagger Ultra. Tariff: 903020, Weight: 0.8 kg, 3 year warranty
Time Tagger Streaming time-to-digital converters
TT20 Time Tagger 20
TTUB-P Time Tagger Ultra - Performance Edition
TTUC-P Time Tagger Ultra - Performance Edition - Additional Input
TTUH-P Time Tagger Ultra - Performance Edition - High Resolution
TTUB-V Time Tagger Ultra - Value Edition
TTUC-V Time Tagger Ultra - Value Edition - Additional Input
TTX-B Time Tagger
TTX-C Time Tagger X
SYNC Synchronizer
