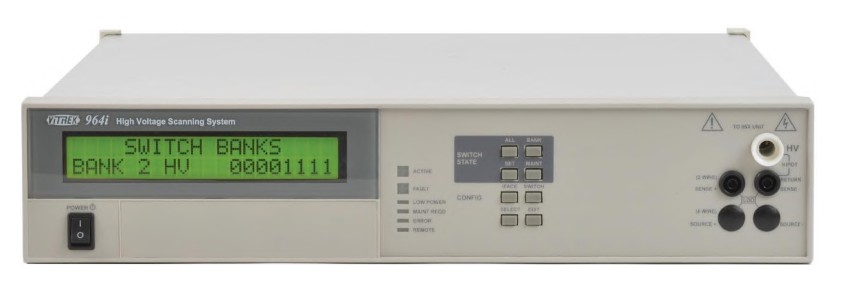

964i - High Voltage Switching System

Main features

Handles Up to 64 Channels — Supports multi-point, multi-conductor testing in one compact unit.
High Voltage & Current Support — Up to 15KV and 40 amps to meet demanding test specs.
Automated Routing — Eliminates manual switching errors and operator exposure to high voltage.
Fast, Repeatable Tests — Boosts throughput while improving test consistency and product reliability.
Flexible Voltage Configurations — Supports 3KV, 7KV, 10KV, and 15KV voltage ratings.
Seamless Integration — Connects directly to Vitrek Hipot Testers via RS232 or GPIB.
QuickTest™ Software Ready — Enables full automation, data logging, and remote programming.
Custom Setup Options — Supports HV and return bus configuration, plus optional mux cards for added versatility.
Durable, Compact Build — Made in the USA with CE certification for performance and safety

Options

Clear

Eliminate slow, error-prone manual switching. The Vitrek 964i High Voltage Switching System automates complex, multi-point hipot testing — delivering faster results, greater accuracy, and improved safety. Whether you’re testing 16-conductor medical cables, 64-pin connectors, or SMD capacitor trays, the 964i handles it all with ease.

Unmatched Flexibility: Configure up to 64 test points in a single unit — or scale up by combining multiple units for increased capacity. Choose from four voltage ratings (3KV, 7KV, 10KV, 15KV) and customize input configurations (+HV bus or -return bus) to meet your exact specifications.

Seamless Integration: Standard front-panel inputs connect directly to Vitrek’s 95X or V7X Series Hipot Testers, while up to 60 rear terminals link with your DUTs. Control up to 4 units directly from your hipot tester or 10 units via PC using the built-in RS232 or optional GPIB interface.

Smarter, Safer, Faster: The 964i’s intuitive LCD display keeps you informed with live system status and switch confirmations. No more manual reconfigurations — just rapid, repeatable results without the risk of operator error or exposure to high voltage.

	964i - High Voltage Switching System Mainframe (8 card capacity) HV Switching System
	964i-8X2MX - Pre-built 964i w 2 ea 7KV 8 Ch. Cards and a Hipot/Cont Mux Card HV Switching System
	964i-16X2MX - Pre-built 964i w 4 ea 7KV 8 Ch. Cards and a Hipot/Cont Mux Card HV Switching System
	964i-24X2MX - MX Pre-built 964i w 6 ea 7KV 8 Ch. Cards and a Hipot/Cont Mux Card HV Switching System
	LV3-8R - 3KV Single (+) Input Bus 8 Outputs, Red Banana Jacks HV Switching System
	LV3-8B - 3KV Single - Input Bus 8 Outputs, Black Banana Jacks HV Switching System
	LV3-8S - 3KV (-) Bus Input 4 Outputs Blk, (+) Bus Input 4 Outputs Red HV Switching System
	HVC-MB - 3KV Dual Input (HV/Cont) Single Output (+) Bus HV Switching System
	HVC-FW - 7KV Single (+) Input Bus 8 Outputs, White HV Terminals HV Switching System
	HV7-8W - 7KV Single (-) Input Bus 8 Outputs, Black HV Terminals HV Switching System
	LV3-MX2 - 7KV (-) Bus Input 4 Outputs Blk, (+) Bus Input 4 Outputs White HV Switching System
	HVC-FB - 7KV Dual Input (HV/Cont) Single Output (+) Bus HV Switching System
	TL-HVW - 10KV Single Input Bus 8 Outputs, White HV Terminals HV Switching System
	HVW-20 - 10KV Single Input Bus 8 Outputs, Black HV Terminals HV Switching System
	598-8012 - 10KV Dual Input (HV/Cont) Single Output (+) Bus HV Switching System
	HV7-8B - 15KV Single Input Bus 8 Outputs, White HV Terminals HV Switching System
	HV7-8S - 15KV Single Input Bus 8 Outputs, Black HV Terminals HV Switching System
	HV7-MX2 - 15KV Dual Input (HV/Cont) Single Output (+) Bus HV Switching System
	HV10-8W - GPIB Interface Option HV Switching System
	HV10-8B - GPIB Cable, 1 meter length HV Switching System
	HV10MX2 - Replacement Vitrek Hipot Communication Cable 7ft HV Switching System
	HV15-8W - Rack Mount Kit HV Switching System
	HV15-8B - Additional Male HV Mating Connector, White HV Switching System
	HV15-MX2 - Additional Male HV Mating Connector, Black HV Switching System
	GP-964 - Female HV Panel Mount Receptacle/Connector, White HV Switching System
	GP-1 - 20KV Rated 18 AWG Test Lead 4ft , HVC-MW to Alligator Clip HV Switching System
	VICL-2 - 20KV Rated 18 AWG Test Lead 4ft , HVC-MB to Alligator Clip HV Switching System
	RM-1 - Bulk 20KV Rated 18 AWG Test Lead Wire, price per ft HV Switching System
	HVC-MW - Test Lead ASEM, #18 AWG WHT 48/HVC-MW/HVC-MW HV Switching System

M-964i	High Voltage Switching System
964i	High Voltage Switching System Mainframe (8 card capacity)
964i-8X2MX	Pre-built 964i w 2 ea 7KV 8 Ch. Cards and a Hipot/Cont Mux Card
964i-16X2MX	Pre-built 964i w 4 ea 7KV 8 Ch. Cards and a Hipot/Cont Mux Card
964i-24X2MX	MX Pre-built 964i w 6 ea 7KV 8 Ch. Cards and a Hipot/Cont Mux Card
LV3-8R	3KV Single (+) Input Bus 8 Outputs, Red Banana Jacks
LV3-8B	3KV Single - Input Bus 8 Outputs, Black Banana Jacks
LV3-8S	3KV (-) Bus Input 4 Outputs Blk, (+) Bus Input 4 Outputs Red
LV3-MX2	3KV Dual Input (HV/Cont) Single Output (+) Bus
HV7-8W	7KV Single (+) Input Bus 8 Outputs, White HV Terminals
HV7-8B	7KV Single (-) Input Bus 8 Outputs, Black HV Terminals
HV7-8S	7KV (-) Bus Input 4 Outputs Blk, (+) Bus Input 4 Outputs White
HV7-MX2	7KV Dual Input (HV/Cont) Single Output (+) Bus
HV10-8W	10KV Single Input Bus 8 Outputs, White HV Terminals
HV10-8B	10KV Single Input Bus 8 Outputs, Black HV Terminals
HV10-MX2	10KV Dual Input (HV/Cont) Single Output (+) Bus
HV15-8W	15KV Single Input Bus 8 Outputs, White HV Terminals
HV15-8B	15KV Single Input Bus 8 Outputs, Black HV Terminals
HV15-MX2	15KV Dual Input (HV/Cont) Single Output (+) Bus
GP-964	GPIB Interface Option
GP1-1.	GPIB Cable, 1 meter length
VICL-2	Replacement Vitrek Hipot Communication Cable 7ft
RM-1.	Rack Mount Kit
HVC-MW	Additional Male HV Mating Connector, White
HVC-MB	Additional Male HV Mating Connector, Black
HVC-FW	Female HV Panel Mount Receptacle/Connector, White
TL-HVW	20KV Rated 18 AWG Test Lead 4ft , HVC-MW to Alligator Clip
TL-HVB	20KV Rated 18 AWG Test Lead 4ft , HVC-MB to Alligator Clip
HVW-20	Bulk 20KV Rated 18 AWG Test Lead Wire, price per ft
598-8012	Test Lead ASEM, #18 AWG WHT 48/HVC-MW/HVC-MW
