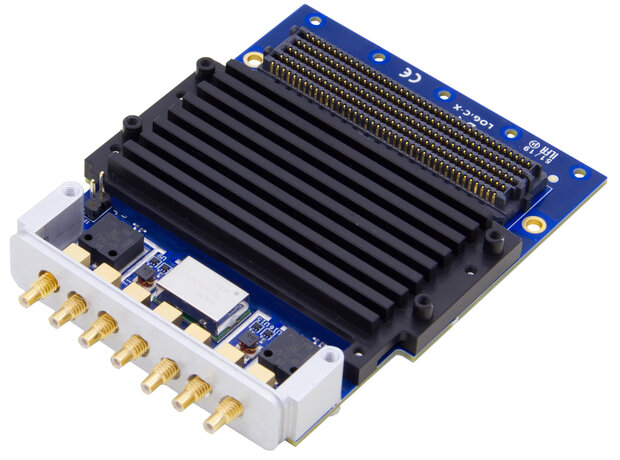

With the LXD10K0 Logic-X provides a unique analog interface product that is based on the 12-bits low latency wide bandwidth ADC (EV12AS350A) and from Teledyne E2V. Multi card synchronization is supported thanks to a flexible
With an analog input stage that has a very wide input bandwidth from 0.5MHz up-to 4.8GHz and the low latency 5.4Gsps ADC from E2V (EV12AS350A) the LXD30000 delivers unmatched performance with regards to SFDR, close in phase noise and latency (7.2 ns) on its analog input channel. Sampling at 5.4 Gsps offers an instantaneous bandwidth of 2.7GHz.
The ADC offers 12-bits resolution further contributing to achieve best in class signal to noise ratios.
It is possible to achieve a very low latency from the RF input to the RF output because of the LVDS connectvity to the host carrier. This can be less than 18 ns, depending on the carrier that is used.
The onboard low noise clock generator ensures easy integraton into small single channel systems as well as standalone operaton. For larger systems it is possible to directly provide the sample clock to the front panel SSMC connector or to synchronize the local clock generator to an external reference clock.
