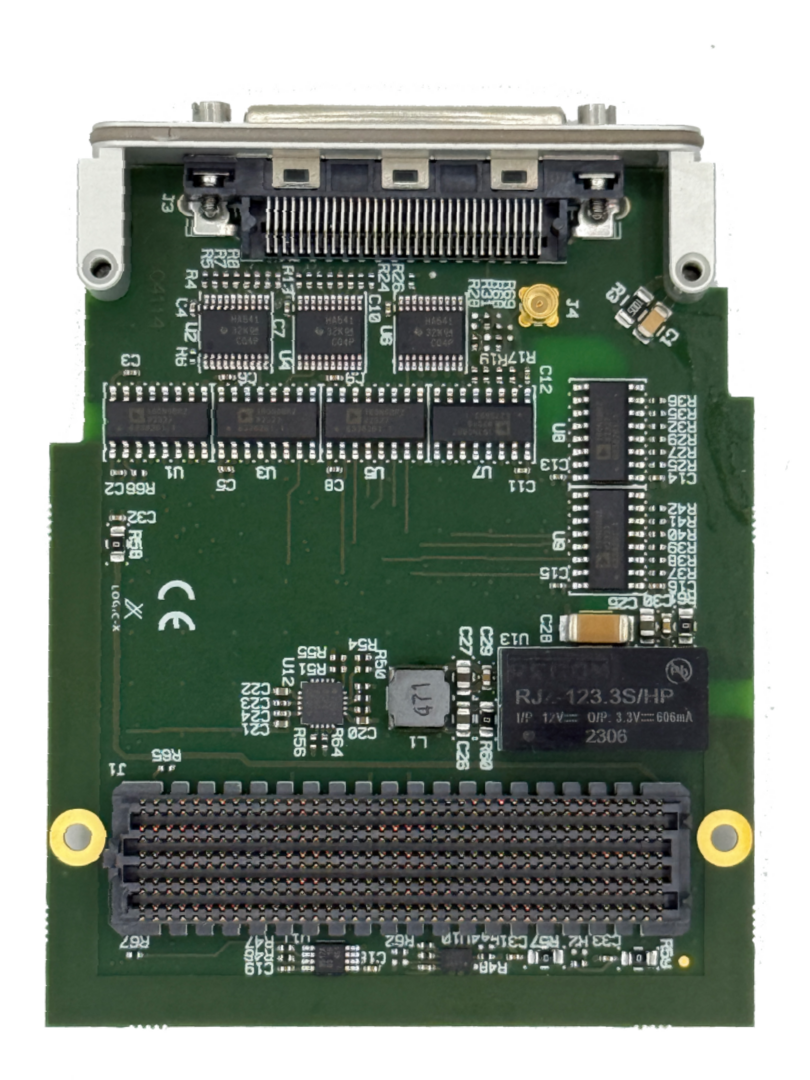

The LXD40K0 FMC (FPGA Mezzanine Card) is designed to support Camera Link interfaces with galvanic isolation, ensuring electrical separation between the I/O and the FMC connector. The module is fully compatible with Base, Medium, and Full Camera Link standards, and can be reconfigured to support a dual Base Camera Link setup if required.
Unlike conventional FMC I/O modules, our isolated FMC products are specifically designed for high-voltage, high common-mode transient environments. Integrated galvanic isolation and high-CMTI digital isolators protect the FPGA and eliminate ground loop and EMC issues, simplifying system integration in demanding industrial applications.
The LXD41K0 is part of the Logic-X stackable FMC product line, enabling flexible and scalable configurations.
An optional bottom-side FMC stacking connector routes the Lower LA[16:0] signals from the stack connector to the LA[33:17] of the top FMC connector.

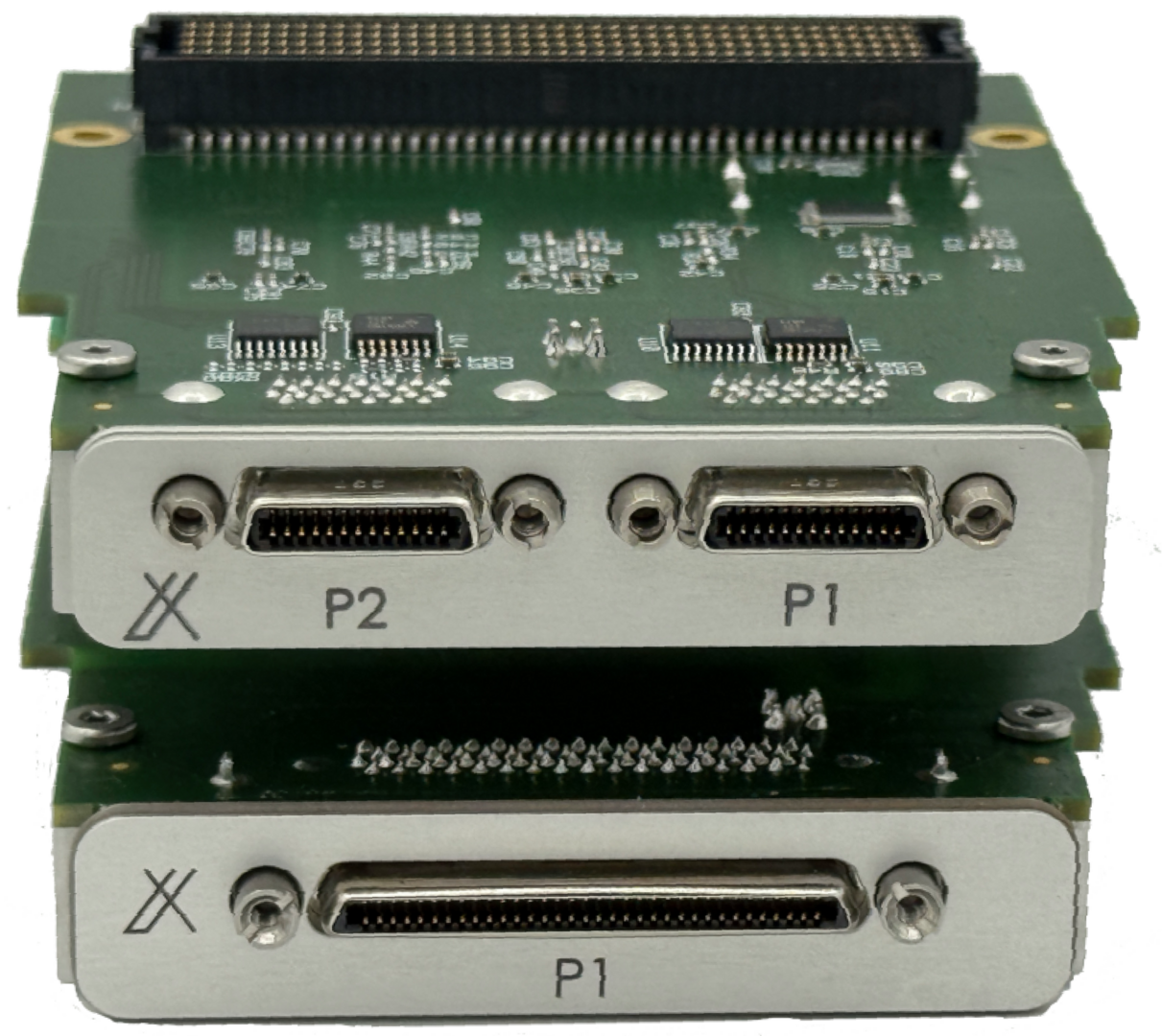

As a result two LXD40K0 modules can be stacked on a single LPC site, creating either a dual medium or quad Base camera link interface
Other FMC modules requiring only LA[16:0] signals can also be combined in mixed configurations. This architecture enables scalable channel counts without requiring additional FMC sites.
