DCA40G500 - Wideband 40GHz Downconverters

Main features

  • 24 GHz to 40 GHz RF Input Frequency Coverage
  • Real-Time Instantaneous IF Bandwidth of 500 MHz
  • Wireless mmWave 5G Frequency Range 2 (FR2) Testing:
    • Covers the 400 MHz Channel Bandwidth of mmWave 5G FR2
  • Pre-Select Filtering Eliminates Out-of-Band Signals & Aids Spurious Mitigation
  • Real-Time Signal Recordings for:
    • Wideband up to 40 GHz RF with External Digitizer via PCIe
  • Windows Spectrum Analyzer with Real-Time Signal Recording & Monitoring
  • Integrated Operational Control of Both RF Downconverter Receiver & Digitizer
  • Analysis Displays Include: IQ Time Domain, I Spectrum, IQ Power Spectrum, Constellation Plot, Spectrogram Plot, Persistence Plot, and Histogram Plot
  • Actively Monitor Displayed Snapshots During Real-Time Live Recordings
  • Multi-Channel Systems with 10 MHz In/Out Reference Synchronization
  • Programming-Free GUI Operation; No Programming Skills Required
Price request Datasheet Ask a question

The downconverters are one of the most economical and cost-effective methods for increasing the frequency performance of RF signal analysis systems. In the new world of 5G networks, a downconverter can reduce time to market and costs for mobile operators and system integrators.

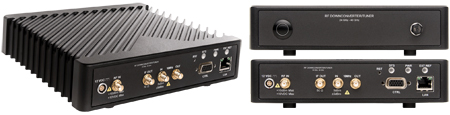

The DCA40G500 series of RF downconverters / tuners are designed for maximum performance and interoperability. The DCA40G500 RF Downconverter / Tuner enables translation of RF signals in the frequency range of 24-40 GHz with up to 500 MHz of real-time bandwidth (RTBW), to capture mm-wave 5G signals.



DCA-040-000 Wideband 40GHz Downconverters
