A1110-05-A - 4-quadrant voltage amplifier

Main features

  • 4-quadrant voltage amplifier
  • DC – 1 MHz
  • Fully configurable and operable by means of the supplied software
  • Output voltages up to 75 Vpeak
  • Output current up to 11 Apeak
  • Symmetrical input
  • Series / parallel input connection in case of higher voltage / current requirements
  • USB port as standard
  • 2 supply voltages
Clear
Price request Datasheet

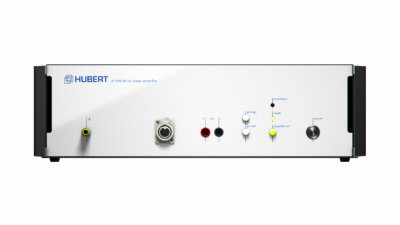

The A1110-05-A is a linear, extreme broadband precision power amplifier. It is ideally suited for applications that require fast signal processing at high power.
There are two operating voltages available for optional selection: high-voltage / low-current or low-volt / high-current. Particularly with low impedance load the operating voltage can be reduced to 1/2 the value, which entails a corresponding reduction of dissipation power.

The device is equipped with a low-noise, temperature-controlled fan. In addition to over temperature shut-down, a feature for dissipation power calculation and current monitoring ensures perfect overload and short-circuit protection.

Operation is performed via the control elements on the front panel of the amplifier and the graphical user interface on a PC, which is connected to the amplifier by means of the USB interface (the required software is included in the scope of delivery).

If higher output voltages or higher output currents are needed, configurations with several A1110-05-A devices connected in series or in parallel are possible.

Option 2 - Internal precision current measurement by means of high-performance current transformer

A1110

Option 3 - Ultra stable gain

A1110

Option 4 - Function generator; DC, 0.05Hz - 300 kHz

A1110

Option 5 - Isolation amplifier for potential isolation of input and output

A1110

A1110-05-A4-quadrant voltage amplifier
Option_02Internal precision current measurement by means of high-performance current transformer
Option_03Ultra stable gain
Option_04Function generator; DC, 0.05Hz - 300 kHz
Option_05Isolation amplifier for potential isolation of input and output

A1110-16-P2 - Adapter for two identical amplifiers of product families A 1110-05 or A 1110-16 A1110-16-P2 - Adapter for two identical amplifiers of product families A 1110-05 or A 1110-16

In order to connect up to four identical power amplifiers for a higher output current it is important that the amplifiers are loaded equally. The adapter achieves this ...
