ADP7000 - 10-bit, 32GS/s, DC-10GHz digitizer with up to 4 channels

Main features

  • Up to 256 GB memory (80+ Gpts per channel memory depth with single-segment acquisition).”
  • Per-channel low-noise front-end (-32 dBm to +22 dBm with 1 dB range steps)
  • User-selectable hardware bandwidth-limiting filters to reduce unwanted noise
  • Real-Time Bandwidth: 2 channels of 10 GHz or 4 channels of 6.5 GHz
  • Real-Time Sampling: 2 channels of 32 GSa/s or 4 channels of 16 Gsa/s
  • Spurious-free dynamic range (SFDR) down-to -70 dBc @ DC – 3 GHz
  • Segmented memory acquisition with minimum dead-time of 200 nanosecond
  • Real-Time FPGA-based processor (640 Gbps I/O)
  • Real-Time magnitude and phase equalization and S-parameter de-embedding
  • Real-Time Digital Down-Conversion (DDC) with equalization
  • Real-Time signal waveform averaging with equalization
  • Real-Time data streaming to external devices via Optical Data Interfaces (ODI)
  • GPU-based re-sampling, S-parameter de-embedding and FFT measurement options
Price request Datasheet Ask a question

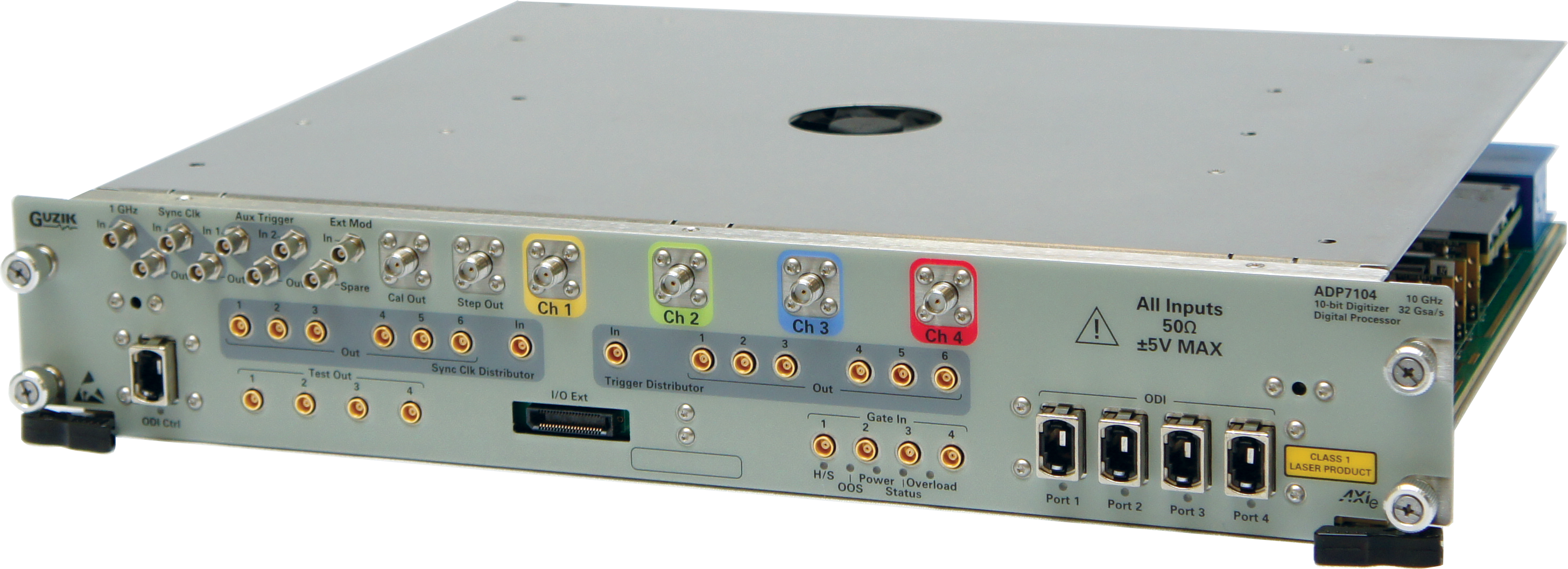

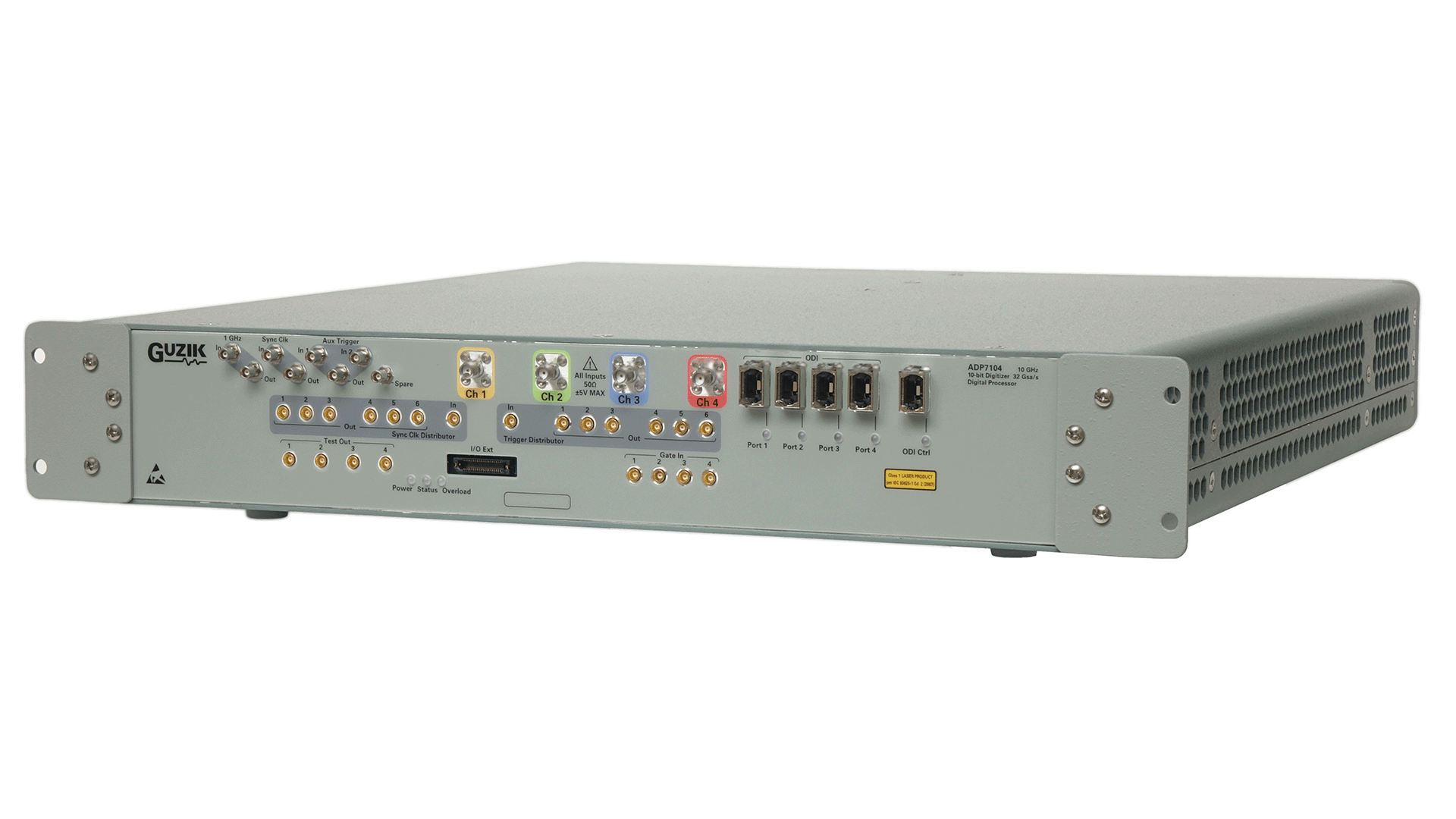

Guzik AXIe ADP7000 Series Modular Digitizer and Digital Processor combine high-speed waveform digitizer with built-in digital signal processing, which both enable mixed-domain signal capture and analysis with high-speed data transfer links to computers. The ADP7000 Module comes in a display-less 2U high 19” AXIe modular form factor.

The product addresses demanding Electronic Test and Measurement (ETM), Automatic Test Equipment (ATE) and Original Equipment Manufacturer (OEM) systems applications in advanced research such as 5G, wireline and wireless communications analysis, hydrodynamics, plasma fusion, mass spectrometry (MS), fourier transform ion cyclotron resonance mass spectrometry (FT-ICR MS), time of flight mass spectrometry (TOF–MS), matrix assisted laser desorption/ionization time of flight mass spectrometry (MALDI-TOF), inductively coupled plasma mass spectrometry (ICP-MS), thermal ionization mass spectrometry (TIMS), liquid chromatography (LC-MS), gas chromatography (GC-MS), ion mobility mass spectrometry (IM-MS), electron spin resonance (ESR) rotational spectroscopy, semiconductor, asynchronous and synchronous contactless Electro-Optical voltage Probing (EOP), Laser Voltage Probing (LVP), Laser Time Probing (LTP), physics, astronomy, aerospace, defense, avionics, military, radar electronics and a variety of other disciplines. The wide analog bandwidth and high sampling rate of the digitizers provide multi band coverage on multiple input channels. For example, the direct RF-sampling capabilities of the digitizers cover radar signals in HF, VHF, UHF, L-, S-, C-, and part of X-band. Direct RF-sampling reduces the overall system complexity by eliminating several input analog down-conversion stages.

The waveform digitizer ADP7000 series modules feature 10-bit Keysight Analog to Digital A/D converters with sampling rates up to 2×32 Gsa/s and analog bandwidth DC to 10 GHz with range adjustable front end (-32 dBm to +22 dBm with 1 dB steps). ADP7000 with up to 256 GBytes of acquisition memory, delivers the longest waveform capture time window available in a high bandwidth analog to digital converter instrument.

ADP7000 features an FPGA-based reconfigurable digital signal processor with up to 2 channel 32 Gsa/s combined processing speed to convey massive time-critical computations directly inside the instrument.

The PCI Express Gen 3 link provides fast control access and DMA transfer of the acquired data to the host computer’s GPU and CPU-based processing back-end. The x4 link delivers up to 3.2 GBytes/s data transfer rate in a Gen3 capable AXIe chassis.

A Software Development Kit is supplied to control the instrument and to integrate the ADP7000 into an existing AXIe measurement system. Guzik also supplies Signal Display Soft Front Panel graphical interface application for signal capturing and visualization.

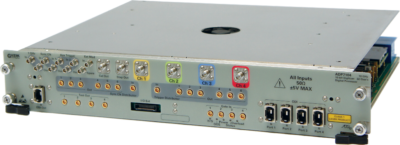

ADP7104 10-bit, 32GS/s, DC-10GHz digitizer with up to 4 channels

  • 02-107738-01 Stand-Alone System Architecture for ADP7000-series Digitizer 1-page Flyer
  • 02-107735-02 Real Time Digital Down Conversion 1-page Flyer
  • 02-107733-02 Real-Time Signal Averaging 1-page Flyer
