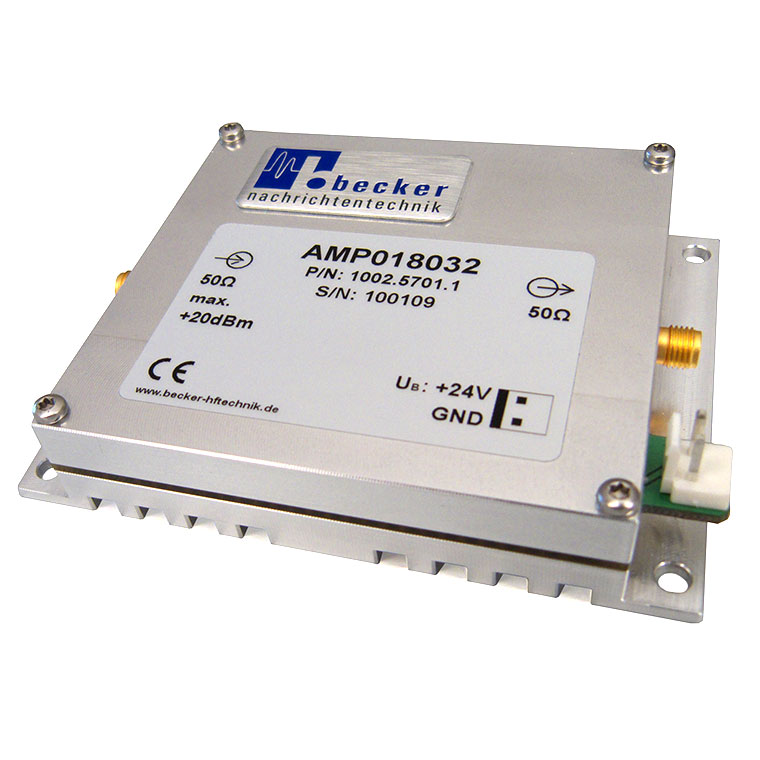

AMP018032 - 1 W Shortwave Amplifier, 100KHz to 80MHz

Main features

  • 1W Amplifier Module
  • 100 KHz to 80 MHz
  • Output power +32 dBm typ
  • OIP3+55 dBm typ
  • OIP2+110 dBm typ
  • Transient protected
  • Integrated heat sink
Price request Datasheet Ask a question

AMP018032 is a wideband amplifier with an output power of up to 1 W suitable for the frequency range 100 kHz to 80 MHz. With a low noise figure and excellent linearity the amplifier provides a wide dynamic range. Thus, AMP018032 is the right solution even for demanding applications such as shortwave receiving systems.

AMP018032 amplifies signals in the frequency range 100 kHz to 80 MHz. It is especially suited for applications in the shortwave range. In order to amplify weak signals among strong interfering signals with little distortion, AMP018032 features a low noise figure and very good intermodulation characteristics.

As the AMP018032 is designed as a module, it can be operated in multiple ways, for example as laboratory equipment or in devices. Its case is made of aluminium and offers passive cooling. For operation at room temperature, the amplifier does not require any active cooling. As a result, AMP018032 is a compact amplifier for versatile use making additional effort of cooling unnecessary.

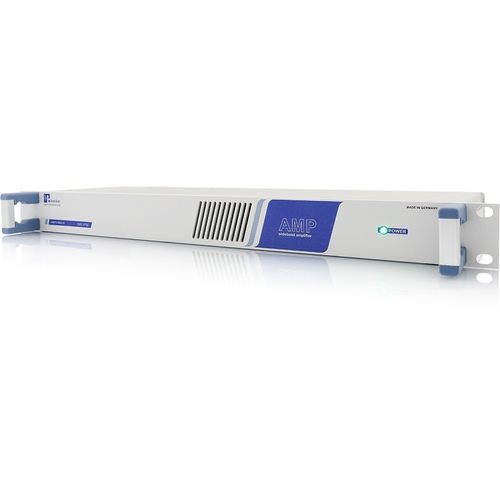

This amplifier module is equipped with a straight power connector. For use in flat devices (1 U), AMP018032 is also available with an angled power connector.

The amplifier module AMP018032 offers excellent RF characteristics covered in compact and robust module design. In addition to the solid design of the mechanics, this amplifier is also resistant against mismatches which can occur in operation with complex loads.

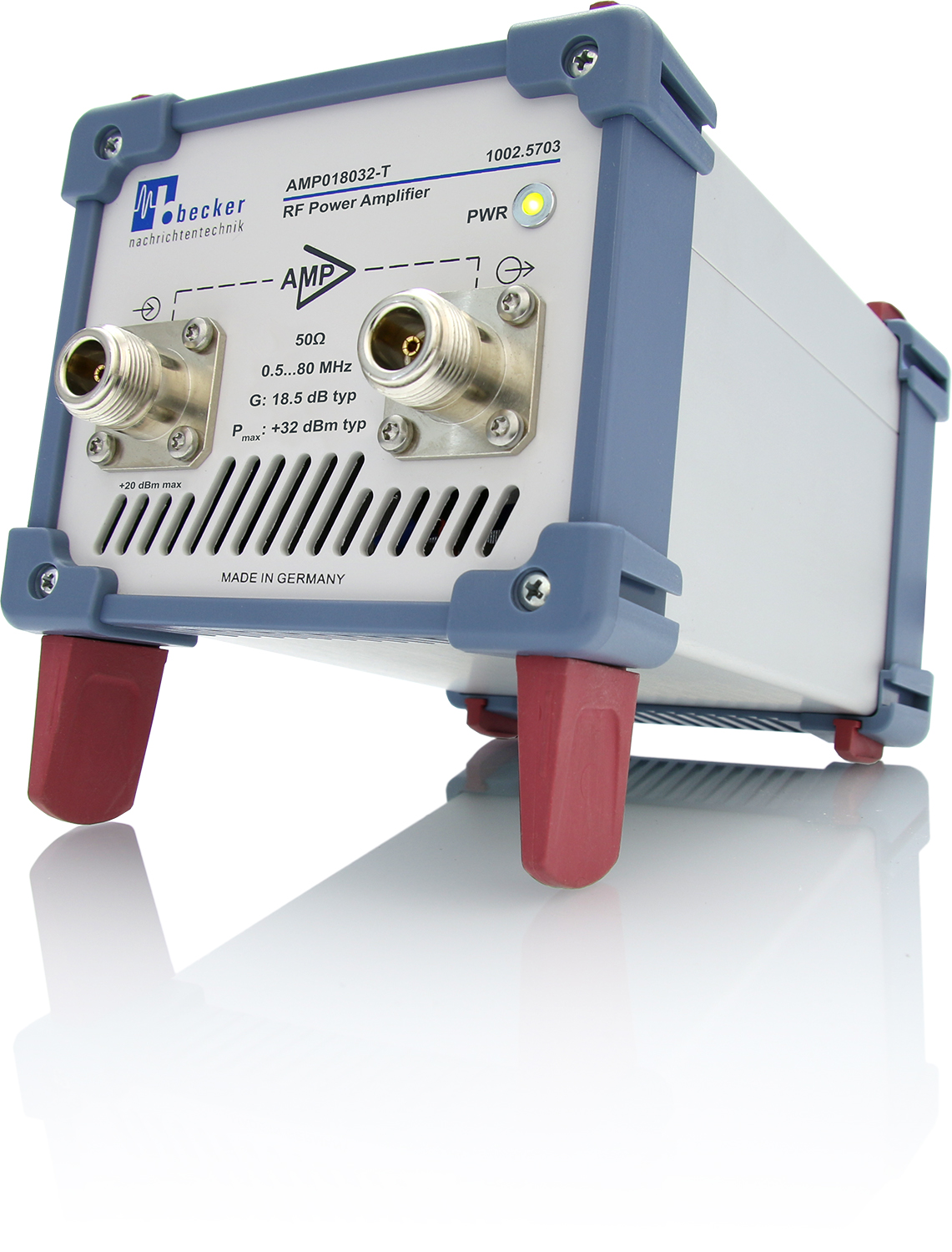

Also available in version Laptop, AMP018032-T

AMP018032-T - Laptop Version

Amplifier

AMP018032 1 W Shortwave Amplifier, 100KHz to 80MHz
AMP018032-T Laptop Version

  • AMP018032-T
