AMP20002000042 is a compact amplifier module in 50 ohms technology designed for the use in professional applications. The robust electric and mechanic design guarantees operations over a long time. The amplifier works stable over a wide frequency range with many octaves. Internal filters and low noise voltage supplies guarantee high suppression of spurious.
To avoid damages during installation, the supply is protected against reverse polarity. The presence of DC power and the module status is indicated by a LED at the module. The health status of the module can also be queried by a floating relay contact for remote operation. The amplifier module is designed for mounting on a heat sink provided by the user for passive cooling.
AMP20002000042 - 15 W Power Amplifier Module with Heat Sink
Main features
- Output power:
+42 dBm f ≤ 8GHz
+39 dBm @ 18 GHz - High OIP3 +44 dBm typ. (8 GHz)
- High dynamic
- Reverse polarity protected
- Self test function
- Optical power and status indication
- Status signaling contact (floating)
- Appropriate heat-sink available

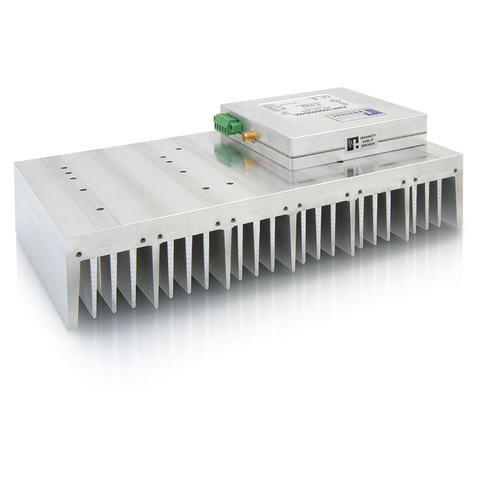

| AMP20002000042 - Module incl. heat sink Amplifier |
|

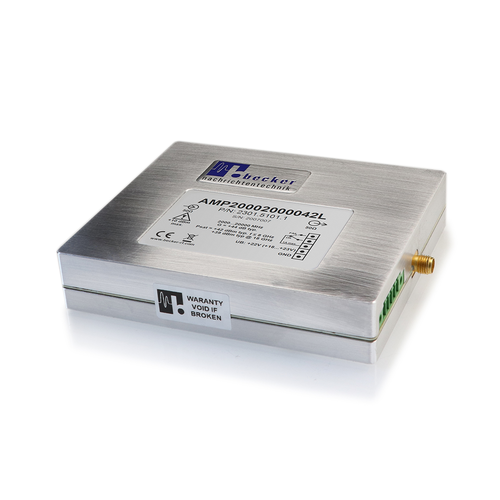

| AMP20002000042L - Module without Heatsink Amplifier |
|

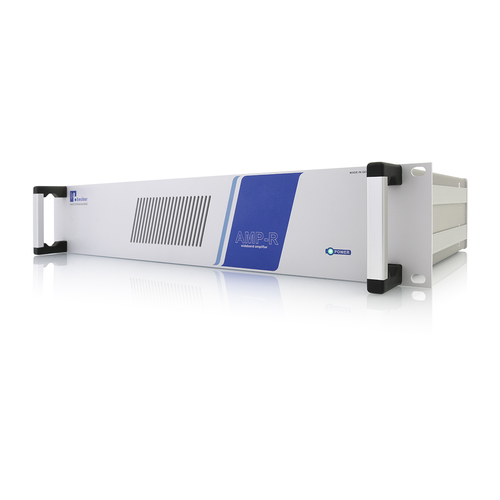

| AMP20002000042R - 19 inch - 2U rack device Amplifier |
| AMP2000600040L | 15 W Power Amplifier Module with Heat Sink |
| AMP20002000042 | Module incl. heat sink |
| AMP20002000042L | Module without Heatsink |
| AMP20002000042-R | 19 inch - 2U rack device |
