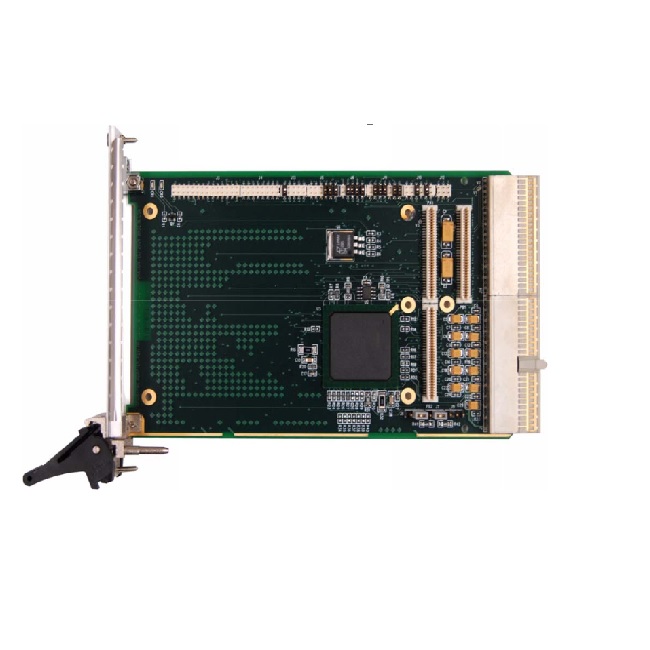

cPCIX-PMC-Adapter - cPCIx to PMC adapter

Main features

  • Complies with the protocol and electrical standards of the following specifications:
    • PCI Local Bus Specification R2.3
    • PCI-X 1.0 rev A, Bridge Architecture
    • PCI-X Addendum to the PCI Local Bus Specification
  • 64Bit CPCI-X Bus to 64Bit PMC Adapter on 3U card. Operates with any combination of 64Bit or 32Bit PMC cards in 64Bit or 32Bit CPCI-X Bus.
  • Allows operation of PMC cards with slower maximum bus clock rates in higher clock rate CPCI-X Bus eliminating clock slowdown.
  • Major component of the CPCI-X Adapter is the Intel 31154 133MHz PCI Bridge.
  • Selectable PMC Signaling Levels allow use of 5 volt only, 3.3 volt only, or universal PMC boards in any CPCI signaling level environment.
  • Automatic or Manual selection of Primary Clock Speed (CPCI Bus). Selection includes
    PCIX- (133MHz, 100MHx, or 66MHz) or PCI (66MHz or 33MHz) Bus Speed.
  • Automatic or Manual selection of Secondary Clock Speed (PMC Bus). Selection includes
    PCIX- (133MHz, 100MHx, or 66MHz) or PCI (66MHz or 33MHz) Bus Speed.
Price request Datasheet

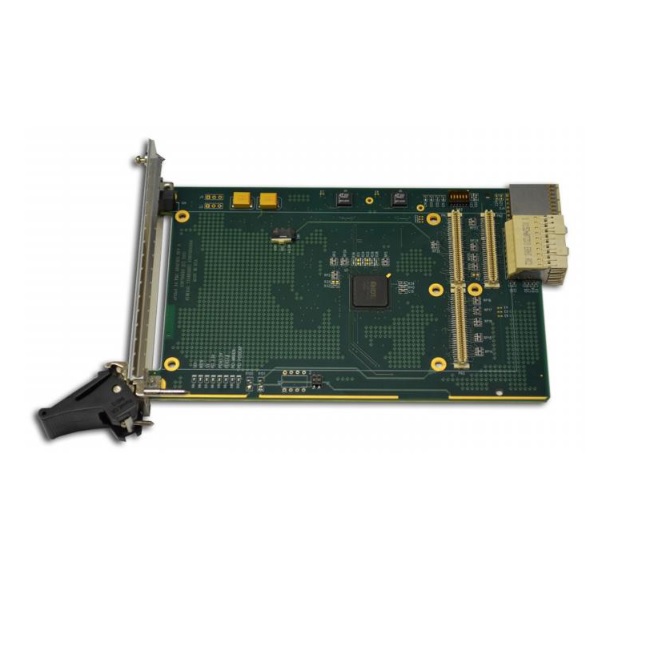

Adapts a single-width PMC form factor to cPCI Express

cPCIx-PMC-AdaptercPCIx to PMC adapter
