CSDA-1 - Clock signal distribution and amplifier 1PPS, 5MHz, 10MHz (5 Outputs)

Main features

  • Distributes 1 PPS, 5 MHz & 10 MHz signals, 5 outputs each
  • High Isolation
  •  Low phase noise
  • Very good stability
  • Signal fault alarm
  • Battery backup available
Clear
Price request Datasheet

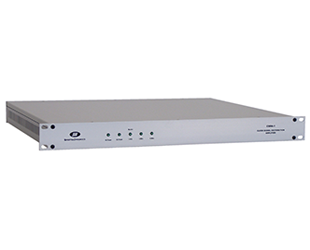

The CSDA-1 is a high performance clock signal distribution and isolation amplifier. The device is used to provide distribution of 1 PPS signals, 5 MHz signals and 10 MHz signals. The CSDA-1 contains a pulse distribution module with one input and five buffered outputs that can drive a 50-ohm cable. The second module is a 5 MHz distribution amplifier with one input and five outputs.

The third module provides five buffered and isolated 10 MHz signals that are obtained by doubling the 5 MHz input signal. The channel-to-channel isolation in the RF distribution modules is typically 125 dB and reverse isolation is typically greater than 135 dB.

The phase noise of the modules is exceptionally low, typically –150 dBc/Hz @ Fourier frequency of 1 Hz and –172 dBc/Hz @ Fourier frequency greater than 10 kHz. Both the input and outputs are matched to 50 ohms to obtain better than 25 dB return loss. All RF outputs are AC coupled and the grounds are DC isolated to reduce the effect of ground loops.

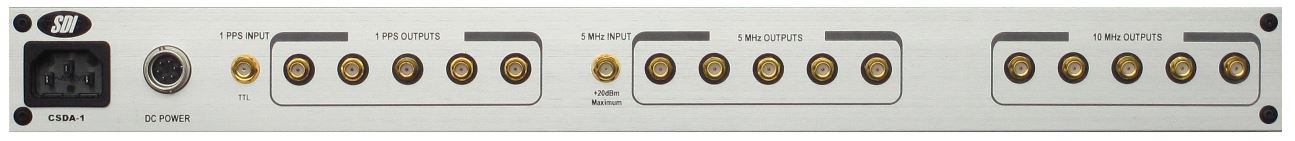

CSDA-1 Opt A - Module 1: 1PPS 5 Outputs - Module 2: 5MHz 5 Outputs - Module 3: 5 Outputs from Module 2

Option A

CSDA-1 Opt C - Module 1: 1PPS 5 Outputs - Module 2: 1 to 50MHz 5 Outputs - Module 3: 5Mhz IN and 10MHz Out (x5)

Option C

CSDA-1 Opt B - Module 1: 1PPS 5 Outputs - Module 2 & 3: 1 to 50MHz 5 Outputs

Option B
