DAT64L - 6GHz Programmable attenuator

Main features

  • Max input power: +25.0dBm
  • Dimensions: 2.75″ x 1.25″ x 2.15″
  • Attenuation: 0-63dB
  • Step Size: 0.5dB
  • Frequency: 1MHz – 6GHz
  • Insertion loss: < 8dB
  • Return loss: 15dB Typical
Price request Datasheet

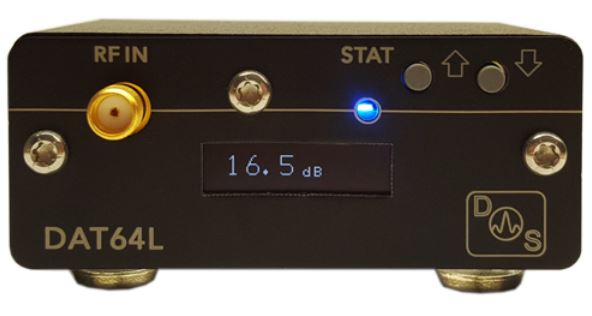

The DAT64L Digital Programmable Attenuator is a compact stand-alone and USB-controlled RF Step Attenuator with 0.5dB steps and a range of 0 to 63dB. This premium version features a bright OLED display and front user control buttons. Input frequency ranges from 1MHz to 6GHz.

No host PC is required to use this device. Automated scripted control is extremely easy requiring no extra drivers, just a simple virtual COM port connection and SCPI based text commands.

DAT64L6GHz Programmable attenuator
