FG-100 - Fixed gain amplifier

Main features

  • Variable gain
  • Low phase noise:
    • -160 dBc/Hz @ 10 Hz
    • -175 dBc/Hz @ 10 kHz
  • Low distortion: -40 dBc @ +13 dBm
  • 3 dB BW 1-200 MHz
Price request Datasheet

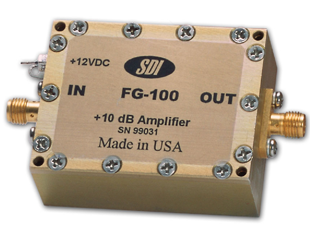

The FG-100 is a general purpose fixed gain amplifier with a gain of +10 dB. For custom applications the gain of the amplifier can be specified at the time of ordering. The unit features low phase noise and a 200 MHz bandwidth.

The input and output of the amplifier are AC coupled. Signal input and output connectors are SMA
