IFC_1211 - VME Intelligent FPGA Controller

Main features

  • 6U VME64x Single Board Computer
    • Freescale PowerPC e6500 computing core
    • QorIQ T2081 1.4 (1.8) GHz
    • 2/4 GBytes DDR3L System Memory
    • NAND Flash, NOR Flash
    • Dual 10/100/1000 BaseT Ethernet
    • Single RS232
  • PCIe GEN2 24-port switch PES32NT24
    • Eight NTB ports
    • Multicast support
    • Embedded DMA Controller
    • SSC / CFC clocking
  • Single VITA 42.3 XMC/ PMC Mezzanine
  • Dual VITA57.1 HPC FMC Mezzanines
  • Quad/Octal Tx/Rx 12.5 Gb/s JESD204B
  • UHM VME P0 extension (7 Gb/s)
  • VME64x Master/Slave with 2eSST support
  • Thermal and Power supplies monitoring
  • Xilinx Kintex UltraScale CENTRAL FPGA
  • Xilinx Artix-7/ FF484 IO FPGA
  • Powered by TOSCA III FPGA Design Kit
  • Linux / EPICS / VxWorks BSP
Clear
Price request Datasheet

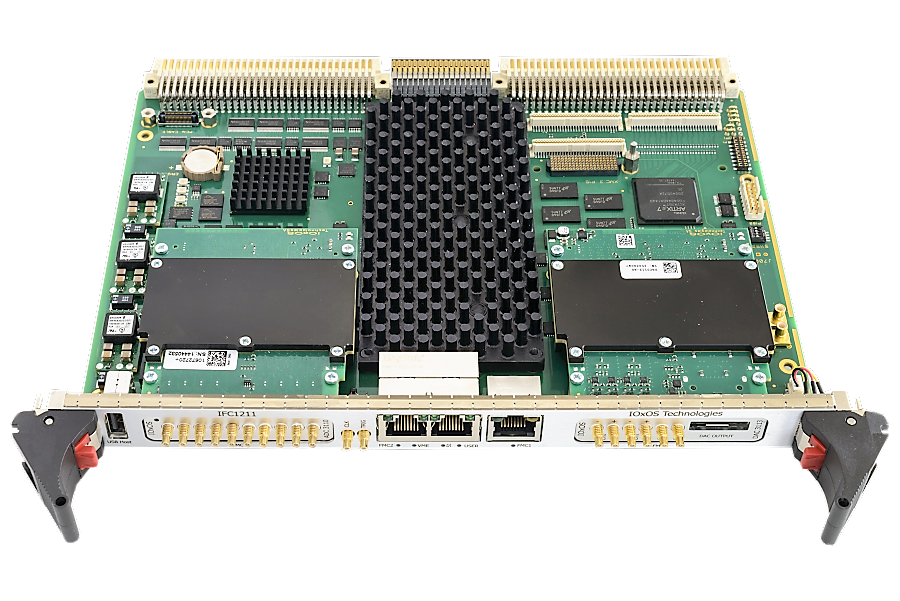

The IFC_1211, a 6U VME64x highly configurable Single Board Computer featuring embedded FPGA capability and VITA 42.3 XMC, PMC, VITA57.1 FMC I/O expansion slots.
The IFC_1211 is backward compatible with its P2020 based predecessor, the IFC_1210, providing highest computing power with hardware based FPU/ALTIVEC and high performance Xilinx Kintex UltraScale FPGA.
The IFC_1211 integrates the latest generation of Freescale PowerPC QorIQ processors. The T2081 provides quad dual threat core capability running up to 1.8 GHz with medium power operation (~14[W] Typ. @ 1.4GHz), and is complemented by large DDR3L System Memory (up to 4GBytes), non volatile memory NOR, NAND and multiple I/O capabilities such as dual 1000 Base-T Ethernet.

The on-board Xilinx Kintex UltraScale FPGA implements a high performance Network on Chip (NoC) switched interconnect. This NoC architecture provides a non-blocking, controlled low-latency and high- throughput bandwidth interface between the data producer and consumer. TOSCA III, a comprehensive FPGA Design Kit is available for the development and integration of custom applications.
The IFC_1211 features PCI Express to VME64x Bridge (code name ALTHEA 7910). This field proven FPGA based solution supports all Master/Slave VME64x modes of operation with Slot_1 System Controller function, and also guarantees the long term availability of the board as a result of not depending on already obsolete third parties VME interfaces.
