P00058A - Electrical optical & optical electrical converter

Main features

  • Optical isolation
  • 25Mhz bandwidth
  • 12 bits resolution
  • Hot plug
  • Simplex
  • Input impedance 50 Ohms or 1 Mohm (jumpers on the PCB)
  • Output impedance 50 Ohms
  • Input voltage range -5 V to +5 V
  • Output voltage range -1 V to +1 V or -5 V to +5 V (jumpers on the PCB)
Price request Datasheet

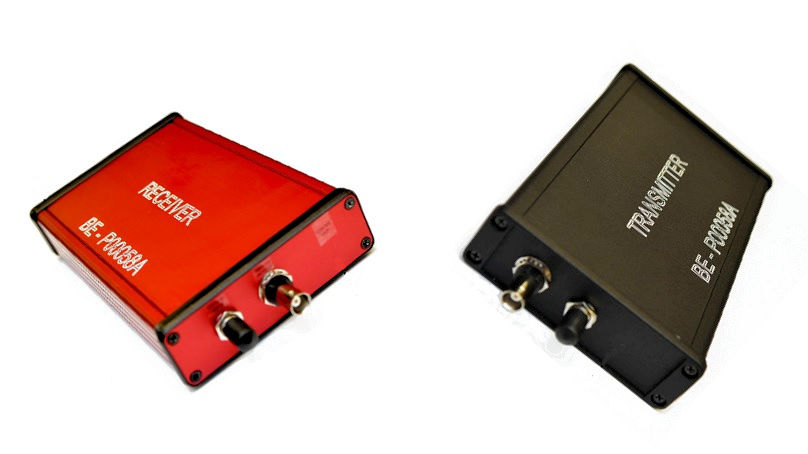

P00058A is an Electrical-Optical and Optical-Electrical Converter system developed to transmit analog and digital signals via optical fibers.
It was designed to be used in situations where the main signal has a high common mode voltage with respect to the equipment to be controlled. This situation can occur in plasma physics experiments, high voltage facilities, and high-power laser systems.
Triggering signals from noisy electrical sources such as high current discharge laser systems may be transmitted without Electro-Magnetic Interference (EMI) to the measurement or control equipment.
