PCI-SIO8BXS-SYNC - 8-channel High-performance Multi-Protocol Serial I/O PCI Board

Main features

  • Eight Independent Multi-Protocol Synchronous Serial Channels
  • Independent Transmit and Receive FIFOs for each Serial Channel –32K byte each
  • Multi-protocol Transceivers support RS422/RS485, RS232, RS423
  • Fast RS422/RS485 Differential Cable Transceivers Provide Data Rates up to 10Mbps
  • RS232 and RS423 Cable Transceivers Provide Data Rates up to 230kbps
  • Two Signal (Clock/Data) or Three Signal modes (Clock/Data/Data Valid)
  • Programmable Oscillators provide increased flexibility for Baud Rate Clock generation
  • Programmable Transmit Bit Counts allow for various transmit word lengths
  • Programmable Transmit Gap Bit Counts allow for variable gap between words
  • Fully Programmable Polarity on all signals
  • Eight signals per channel, configurable as either DTE or DCE:
    3 Serial Clocks (TxC,RxC,AuxC), 2 Serial Data (TxD,RxD), 2 Data Valid (TxE,RxE), plus Spare
  • Unused signals may be reconfigured as General Purpose IO
  • Low Force Helix (LFH) type 160 pin front edge I/O Connector
  • Standard Cable to eight DB25 connectors and Custom Cables available
  • Interchangeable 120Ω Termination Resistors (RS422/RS485 Mode)
Price request Datasheet Ask a question

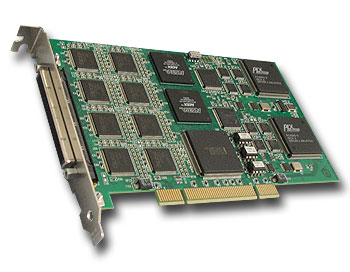

The PCI-SI08BXS-SYNC board is an eight channel serial interface card which provides a simple synchronous serial interface capability for PCI applications. The PCI-SIO8BXS-SYNC combines a flexible parallel/serial converter and 16 external FIFOs to provide eight fully independent synchronous serial channels. These features, along with a high performance PCI interface engine, give the PCI-SIO8BXS-SYNC unsurpassed performance in a serial interface card.

The PCI-SIO8BXS-SYNC features software configurable cable transceivers (RS422, RS232 and others). The PCI-SIO8BXS-SYNC is based on the four channel SIO4BX product line from General Standards Corporation. In order to maintain software compatibility, the PCI-SIO8BXS-SYNC is implemented as two independent four channel SIO4BX-SYNC cards.
