PEV7912 - PCI Express to VME64x Transparent Interface, copper cable

Main features

  • 6U VME64x PCI Express to VME transparent bridge with enhanced expansion capabilities
  • ALTHEA 7910 FPGA based PCI Express to VME64x transparent bridge
  • 256 MBytes DDR3 Shared Memory
  • Low latency PCI Express x4 Fast Path
  • VITA 35 compliance (PMC/XMC Jn14/Jn24 mapping to VME P2)
  • VME P0 extension, VITA 35 compliant
  • Enhanced I/O expansion capabilities
  • PCIe GEN2 24-port switch PES32NT24
  • Thermal and Power supplies monitoring
  • Linux and Windows Device Drivers
Price request Datasheet Ask a question

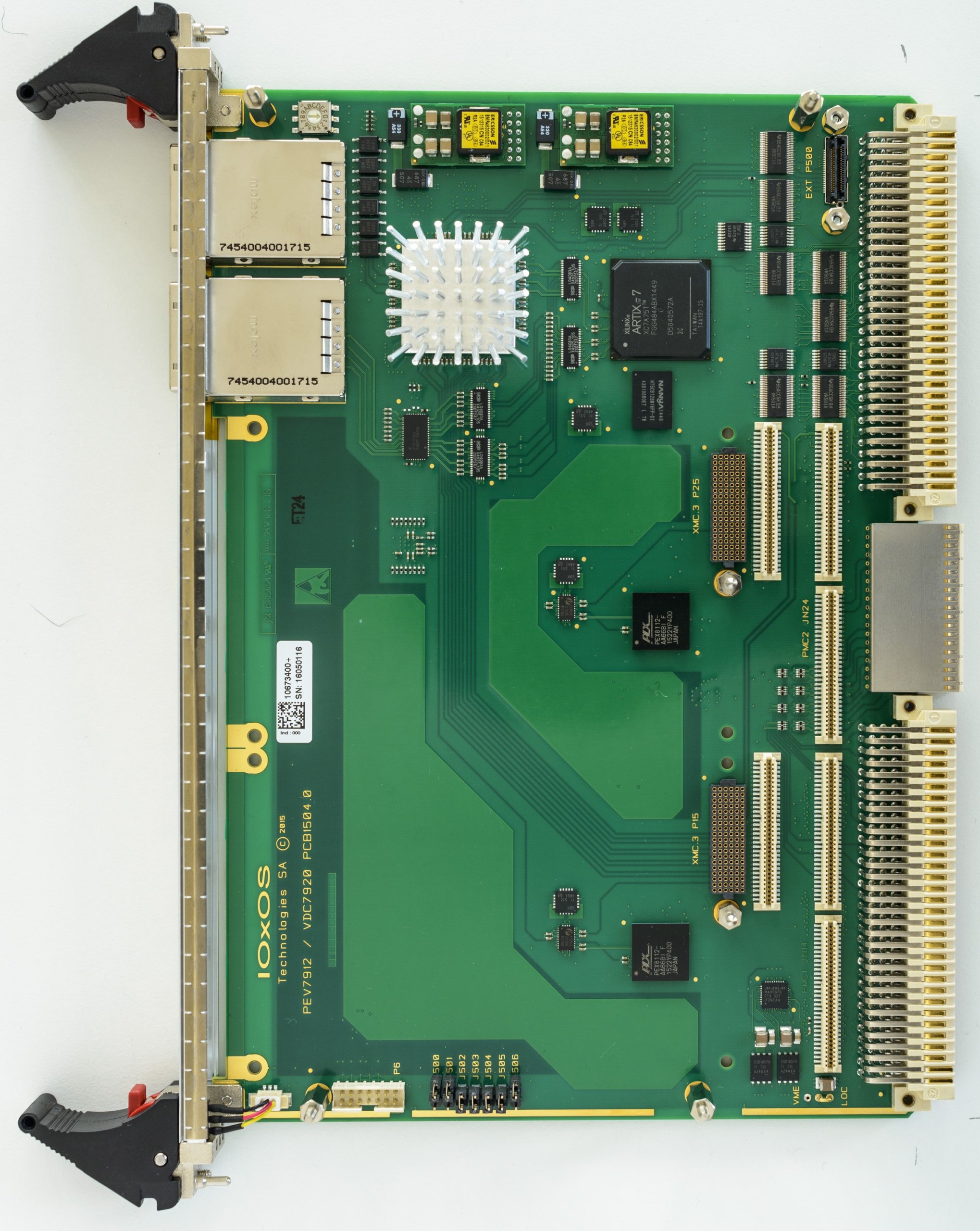

The PEV_7912 is a 6U VME64x PCI Express to VME bridge board with enhanced expansion capabilities and fully compliant with the latest PCI-SIG’s “PCI Express External Cabling Specification”, allowing to extend its onboard PCI Express bus infrastructure and to break trough the VME crate boundaries with copper cables.

The PEV_7912 forms part of a line of IOxOS Technologies VME64x products featuring its proprietary ALTHEA 7910 solution, a PCI Express to VME64x Bridge implemented in a Xilinx Artix-7 FPGA to deliver an extremely competitive COTS in terms of cost, performance and power consumption. This field proven solution natively supports all Master/Slave VME64x modes of operation with Slot_1 System Controller function, including VME64x data transport 2eVME and 2eSST modes with maximal burst length capability, while guaranteeing very long term availability of the board as a result of not depending on already obsolete third party VME interfaces.

PEV_7912-A0 - PCIe to VME64x Bridge, commercial temp. grade VME connectors: P0 and 5-row P1, P2

VME Interface

PEV_7912-B0 - PCIe to VME64x Bridge, industrial temp. grade VME connectors: P0 and 5-row P1, P2

VME Interface

PEV_7912-C0 - PCIe to VME64x Bridge, commercial temp. grade VME connectors: 5-row P1, P2 (P0 is not mounted)

VME Interface

PEV_7912-D0 - PCIe to VME64x Bridge, industrial temp. grade VME connectors: 5-row P1, P2 (P0 is not mounted)

VME Interface

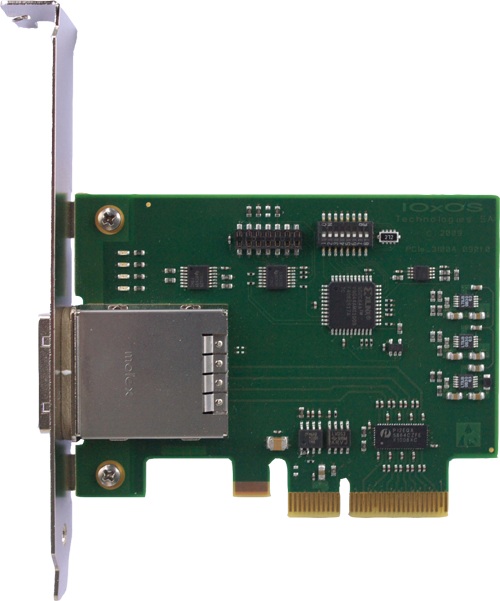

PEA_3100-A0 - PCIe x4 PC Host Adapter, commercial temp. grade

VME Interface

PEA_3100-B0 - PCIe x4 PC Host Adapter, industrial temp. grade

VME Interface

PEV7912 PCI Express to VME64x Transparent Interface, copper cable
PEV_7912-A0 PCIe to VME64x Bridge, commercial temp. grade VME connectors: P0 and 5-row P1, P2
PEV_7912-B0 PCIe to VME64x Bridge, industrial temp. grade VME connectors: P0 and 5-row P1, P2
PEV_7912-C0 PCIe to VME64x Bridge, commercial temp. grade VME connectors: 5-row P1, P2 (P0 is not mounted)
PEV_7912-D0 PCIe to VME64x Bridge, industrial temp. grade VME connectors: 5-row P1, P2 (P0 is not mounted)
PEA_3100-A0 PCIe x4 PC Host Adapter, commercial temp. grade
PEA_3100-B0 PCIe x4 PC Host Adapter, industrial temp. grade
