PI-2 - RF Power indicator 2000 watts

Main features

  • Simultaneous Measurement Forward & Reflected Power
  • Low insertion loss
  • 10 KHz – 2 MHz
  • 2000 Watt Capacity
Price request Datasheet Ask a question

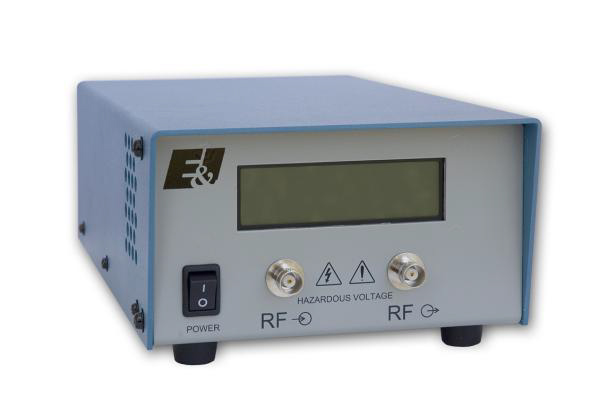

The PI-2 RF power indicator is used to measure the RF level of signal sources in the 10 KHz to 2 MHz range. Measuring RMS power to an accuracy of ± 3% over the entire frequency range, this portable unit is self-contained with an easy to read LCD display.

The PI-2 measures forward and reflected power enabling you to accurately determine the power delivered to the load in your system. The PI-2 operates over the entire frequency range of 10 KHz – 12 MHz and up to power levels of 2000 watts.

PI-2 RF Power indicator 2000 watts
