PMC-OPTO32D - Optically-Isolated I/O PMC Board

Main features

  • 24 optically isolated inputs
  • Selectable input voltage range thru use of field replaceable bias resistors.
  • 8 optically isolated outputs – 4 normal current, 4 high current
  • Software Programmable clock debounce rate
  • Software Programmable Change of State detection. Rising edge or falling edge per input channel
  • Software Programmable Interrupts on any or all Change of State bit(s)
  • Software Pre-loadable Event counter on Input Bit 23
  • Programmable Interrupt on event counter overflow
  • Built in Self-Test Features.
  • Programmable Little Endian / Big Endian swapping
  • PCI cycles Asynchronous to local bus cycles
  • Software Programmable board base address

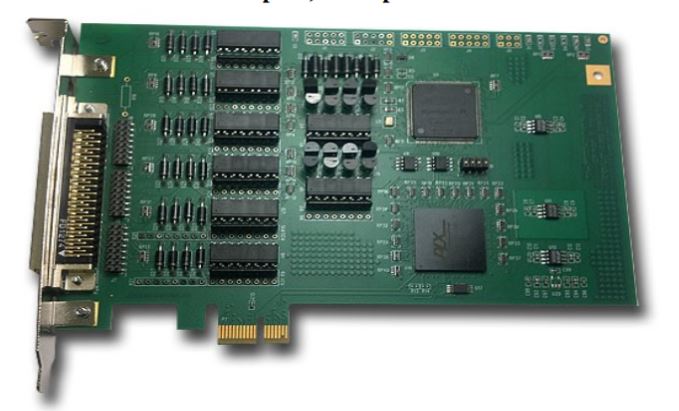

  • Exist in PCIe, PCI, cPCI/PXI, PC104 and PMC
Price request Datasheet

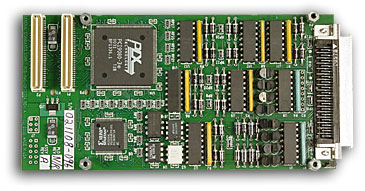

The PMC-OPTO32D board has 32 optically-coupled digital I/ O channels consisting of 8 outputs and 24 inputs. Each channel is electrically isolated (5000 Volts) from the PCI host processor board. Change-of-State Interrupts allow for an interrupt to the PCI host to be generated from any level change on any input.

Built-in-self-test, selectable debounce times, input pulse counter, and I/ O voltages to 50 Volts makes for a versatile digital interface board. The board is a single PMC board, which complies with the PCI electrical interface IEEE 1386.1.

PMC-OPTO32DOptically-Isolated I/O PMC Board
