PMC66-16AI32SSC - 32-Channel, Differential, 16-Bit Simultaneous PMC

Main features

  • 32 Differential Analog Inputs with Dedicated 200KSPS 16-Bit ADC per Channel
  • Sampling Rates to 200 KSPS per Channel (6.4 MSPS Aggregate Rate)
  • Simultaneous Sampling of all Inputs; Minimum Data Skew
  • D32; 66MHz, 33MHz PCI Compatibility, with Universal 5V/3.3V Signaling
  • Input Ranges: +/- 2.5V, +/- 1.25, +/- 0.625V Software-Selectable
  • Sync and Clock I/O Support External Control and Multiboard Configurations
  • Increased Throughput Capacity with Local Data Packing
  • Continuous, Burst and Single-Sample Clocking Modes
  • Hardware Sync I/O for Multiboard Operation
  • 1 MByte FIFO Data Buffer; 512 K-Samples in packed-data mode
  • 2-Channel DMA Engine Sampling Controlled by Internal Rate Generator, by Software Trigger, or Externally
  • Exist in PCIe, cPCI/PXI, PC104 and PCI
Price request Datasheet Ask a question

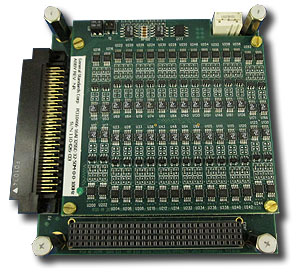

The 16-Bit PMC66-16AI32SSC analog input board samples and digitizes up to 32 input channels simultaneously at rates up to 200,000 samples per second for each channel. Each input channel contains a dedicated 16-Bit sampling ADC, and the resulting sampled data is available to the PCI bus through a 1-MByte FIFO buffer. The 32-Bit local data path supports full D32 local-bus data packing. Throughput capacity is further enhanced with 66MHz PCI support. All operational parameters are software configurable.

Inputs can be sampled in groups of 2, 4, 16 or 32 channels; or any contiguous channel group can be selected for sampling. The sample clock can be generated from an internal rate generator, or by software or external hardware. Input ranges are software-selectable as ±2.5V, ±1.25V or ±0.625V.

An on-demand autocalibration feature determines offset and gain correction values for each input channel, and applies the corrections subsequently during acquisition. A selftest switching network routes calibration reference signals to each channel through internal selftest switches, and permits board integrity to be verified by the host..

PMC66-16AI32SSC 32-Channel, Differential, 16-Bit Simultaneous PMC
