PPS-2 - 2U Half-rack One generator, front panel connectors

Main features

  • External sync
  • High stability
  • Low input VSWR
  • Low temperature coefficient: 3 ps/ºC
  • 50 ohm output: 2 Vp-p
Clear
Price request Datasheet

The PPS-2 is used to generate one pulse per second signals from a sine-wave input signal. The input can be a 1 MHz, 5 MHz or 10 MHz signal. The pulse-per-second (pps) output has a variable pulse width. The input frequency selection and pulse width selections are configured via jumper settings. The output pps can synchronize with an external event. The synchronization is good to +/- ½ of the input clock cycle.

The outputs are designed to drive low impedance loads and long 50 or 75-ohm cables. The channel-to-channel delay differences are less than 1 ns.

PPS-2RM-A - 1U Full-rack, One generator, rear panel connectors

Option A

PPS-2RM-B - 1U Full-rack, Two generators, rear panel connectors

Option B

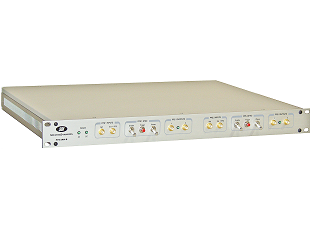

PPS-2RM-B1 - 1U Full-rack, Two generators, front panel connectors

Option B1

PPS-22U Half-rack One generator, front panel connectors
PPS-2RM-A1U Full-rack, One generator, rear panel connectors
PPS-2RM-B1U Full-rack, Two generators, rear panel connectors
PPS-2RM-B11U Full-rack, Two generators, front panel connectors
