PXA(e)732x - PXI (e) arbitrary generator 100MSps 16Bit

Main features

  • Output voltages up to 30mA or ±20mA
  • 100MS/sec. with 16 Bit resolution
  • Floating option available
  • Complex waveform sequencing possible
  • On the fly amplitude and offset changing
  • Additional marker output
Clear
Price request Datasheet

This family of Arbitrary Function Generators is based on the “Flexible configurable PXI Platform” (FlexCPP). This platform allows many variants of customer configured Arbitrary Function Generators. The PXA732x Arbitrary Current Generator Family is also available as PXIe-Device PXAe732x.

Built-in waveform functions
Predefined waveforms (DC, sine, square, triangle, sawtooth) can be configured via software driver. Furthermore is possible to load a user-created waveform.

Fully independent channels
Each channel has its own Clock-PLL, memory and state machine for START, STOP, TRIGGER, SAMPLING and SEQUENCING. This guarantees the two channels to work complete independently. A great amount of trigger capabilities results in multiple sophisticated instrument and channel synchronization possibilities.

Complex waveforms without memory reloading
Arbitrary waveforms will be loaded via data files into the on-board memories for waveform data (1MS) and sequence data (512 sequences). The memory can be segmented and sequenced in any desired order. Furthermore amplitude and offset can be changed on the fly without writing new data into the memories.

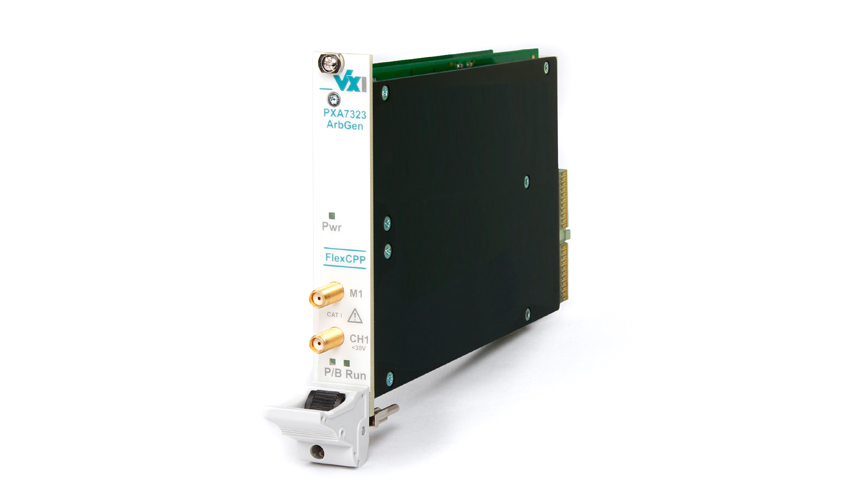

PXA(e)7321 - 1 channel non floating ArbGen in 1 slot

Arbitrary Generator

PXA(e)7322 - 2 channel non floating ArbGen in 1 slot

Arbitrary Generator

PXA(e)7323 - 1 channel floating ArbGen in 1 slot

Arbitrary Generator

PXA(e)7324 - 2 channel floating ArbGen in 2 slots

Arbitrary Generator

PXA(e)732xPXI (e) arbitrary generator 100MSps 16Bit
PXA(e)73211 channel non floating ArbGen in 1 slot
PXA(e)73222 channel non floating ArbGen in 1 slot
PXA(e)73231 channel floating ArbGen in 1 slot
PXA(e)73242 channel floating ArbGen in 2 slots
