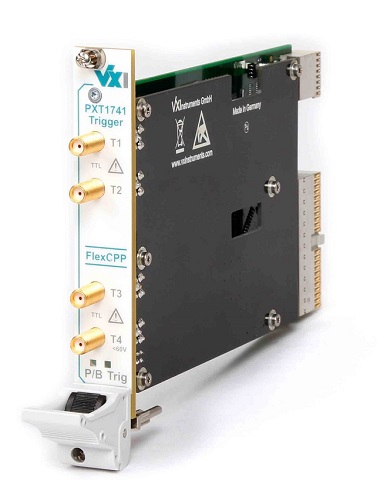

PXT1741 - PXI Trigger Module

Main features

  • Easy linkage of various external modules to the PXI trigger bus
  • Complex concatenation of various trigger sources
  • 12 independent configurable trigger lines
  • Inputs/outputs compatible with 5V TTL standard
  • Software controlled triggering of any target device
  • Based on VXInstruments FlexCPP
Clear
Price request Datasheet

Easy linkage of various external modules.
The PXT1741 PXI Trigger Module is designed to build u a connection between trigger signals from any external trigger source (5V TTL standard) and the PXI trigger bus. Therefore the device is equipped with four SMA front connectors (T1 to T4).

Complex concatenation of various trigger sources.
Each trigger output signal can be a combination of all available trigger sources except the trigger line itself.

Independent configurable trigger lines.
The PXT1741 PXI Trigger Module provides 12 independent configurable trigger lines, where each of them can be used as trigger source or trigger output and two additional trigger sources (PXI Star trigger and Software trigger).

Software controlled triggering.
With the additional software trigger, each with the PXT1741 PXI Trigger Module linked device can be triggered at any time with a simple software command.
