S3B - USB 3.0/2.0/1.x Over Fiber Optic Extension System

Main features

  • 2 USB Ports via optical fiber
  • standard USB 3.0 host controller
  • Up to 5.0 Gb/s, Super speed
Price request Datasheet

The S3B is a remote standard USB 3.0 host controller which can operate at distances up to 100 m and more (depending on transceivers and cable) from the location of your computer. Powered by Adnaco PCIe over fiber optic technology, the S3B was designed to suit many applications with the  USB host interface. The S3B provides 2 USB Root Hub Ports compliant with the USB 3.0  specification. All USB ports can handle the following interfaces:

  • Super Speed (5.0 Gb/s)
  • High Speed (480 Mbps)
  • Full Speed (12 Mbps)
  • Low Speed (1.5 Mbps)

The S3B is connected to a host computer equipped with the Adnaco H1A card and a fiber optic  cable. Super Speed USB is backward compatible with USB 2.0 devices and capable of operating with USB 2.0 platforms. The S3B works with all USB systems and peripherals and does not required any additional software.

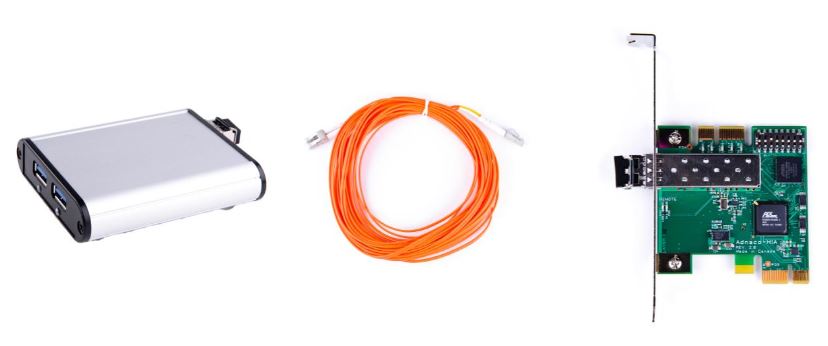

S3B USB 3.0/2.0/1.x Over Fiber Optic Extension System
