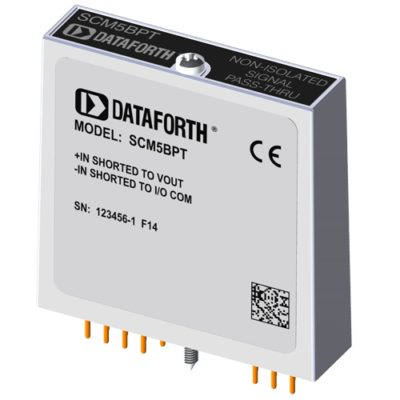

SCM5BPT - Pass Thru Module

Main features

  • ±10V input and provides up to ±10V output
  • Unity gain and no isolation
Clear
Price request Datasheet

The SCM5BPT is a pass-through module used to establish a direct connection between an input signal and the SCM5B series backplane analog bus. It has unity gain and no isolation. It accepts up to ±10V input and provides up to ±10V output

SCM5BPT-1367 - Pass Thru Module with Switch

The SCM5BPT-1367 is a pass-through module used to establish a direct connection between an input signal and the SCM5B series backplane analog bus. It has unity gain, no isolation, and a logic controlled output switch which allows sharing of a common analog bus with other SCM5B modules. It accepts up to ±10V input and provides up to ±10V output. Resettable fuses and overvoltage protection circuitry protect computer-side electronics.

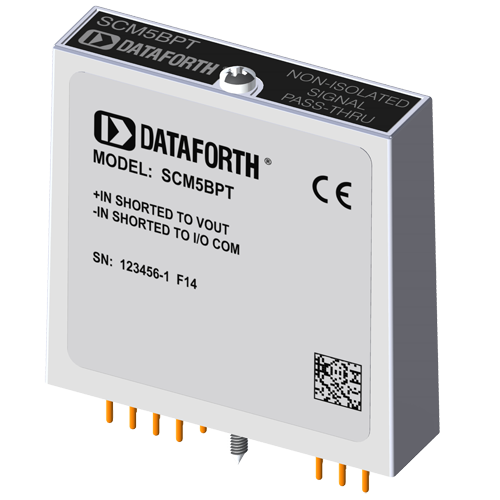

SCM5BPT Pass Thru Module
SCM5BPT-1367Pass Thru Module with Switch
