SIS3300-SIS3301 - 8 Channels 12 & 14-bit VME Digitizer

Main features

  • 8 channels with 12-bit/14-bit resolution
  • 1 to 105 (15 to 105 respective) MSample/s per channel
  • Random clock mode for slower acquisition
  • > 80 MHz analog bandwidth
  • Internal/external clock
  • 2 x 128K Samples/channel
  • Multi event mode
  • Event directory
  • Autostart capability
  • Pre/post trigger capability
  • Start/stop/gate inputs
  • Trigger output
  • Interrupt capability
Price request Datasheet

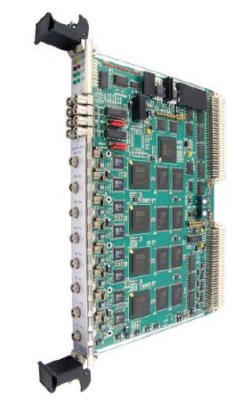

The SIS3300/1 is an 8 channel 6U VME digitizer/transient recorder with a sampling rate of up to 105 MS/s and 12-bit (14-bit respective) resolution. The board has a width of one VME slot. The use of FPGAs for data handling and implementation of the VME interface allows for maximum flexibility.

Acquisition into one memory bank in parallel to readout from the second memory bank in combination with a high speed slave interface allow for the implementation of demanding applications.

SIS3300/SIS3301 8 Channels 12 & 14-bit VME Digitizer
