Squirrel sq Loggers - Multi channel data loggers with smart features and connectivity

Main features

  • 8 channels differential or 16 channels single ended
  • Channel expansion up to 128 Channels
  • 2, 3 and 4 wire resistance measurement
  • Differential voltage -60V to +60V
  • 1/4, 1/2 & full bridge
  • Current Loop (4 20mA)
  • Themocouple S.E and diff B, C, D, J, K, N, R, S and T
  • Thermistor Grant & user defined
  • Digital state input channels
  • Controlled via USB, Micro SD, Bluetooth, Ethernet, Wifi, 4G, Lora
Clear
Price request Datasheet

Ultimate data logging experience, instant connectivity

The Squirrel sq range of data loggers and software, offers you the ultimate experience in data logging through powerful performance, connectivity and innovative software. These next generation loggers boast multiple features to meet your business and applications needs.

Choose your parameters, set your goals

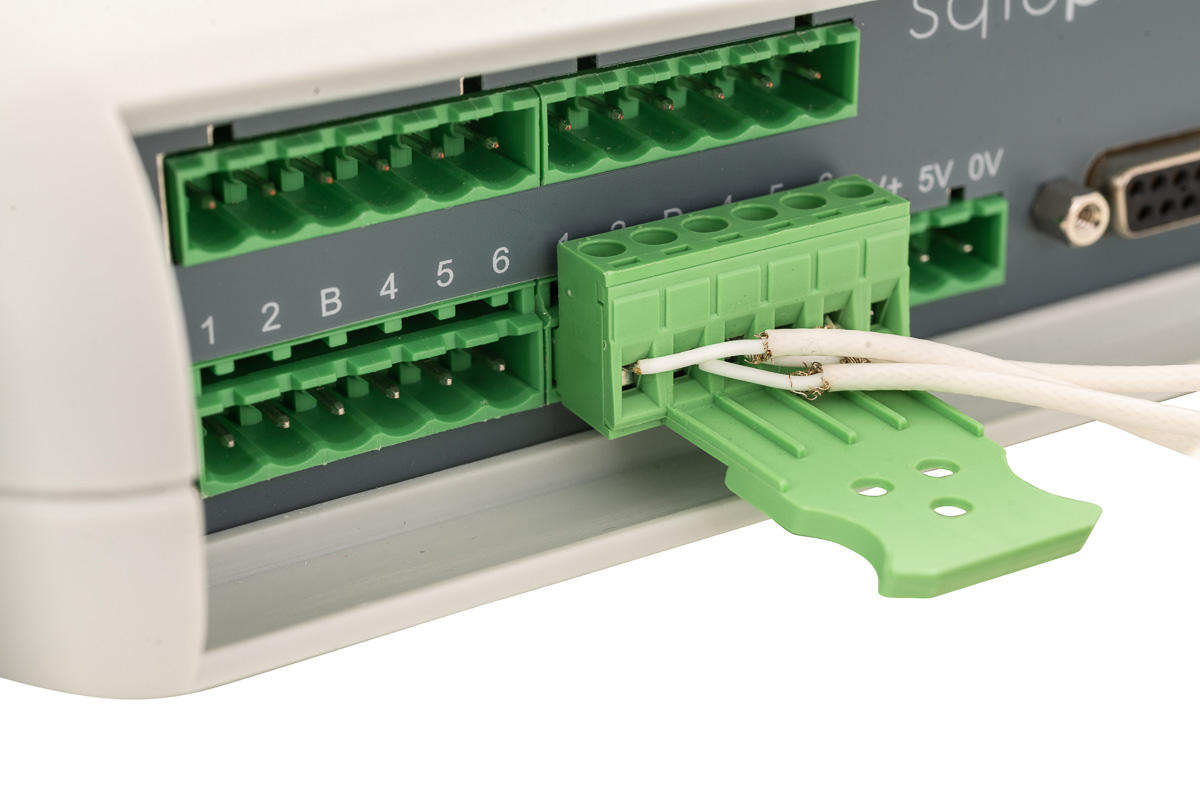

The universal channel inputs measure current, voltage, resistance, and a host of parameters that includes; temperature, humidity, pressure, flow, wind speed, and concentration. Digital channels automatically trigger or stop logging. This means you can set the logger to automatically start or stop logging if an event occurs.

Control via your app, get the data you need instantly

Communication through a dedicated mobile app comes as standard via wireless Bluetooth as well as the ability to network data loggers through the all-new communications hub, giving a host of remote operating options together with powerful data capture. Get the right data, alerts and alarms when and where you want them.

Easy to use, simple to set up

Easy to use and easily programmed, using the new SquirrelView software. The all-new Squirrel data loggers give you everything from standalone portable data logging to a fixed on-line monitoring system that measures many parameters, always giving you instant data access.

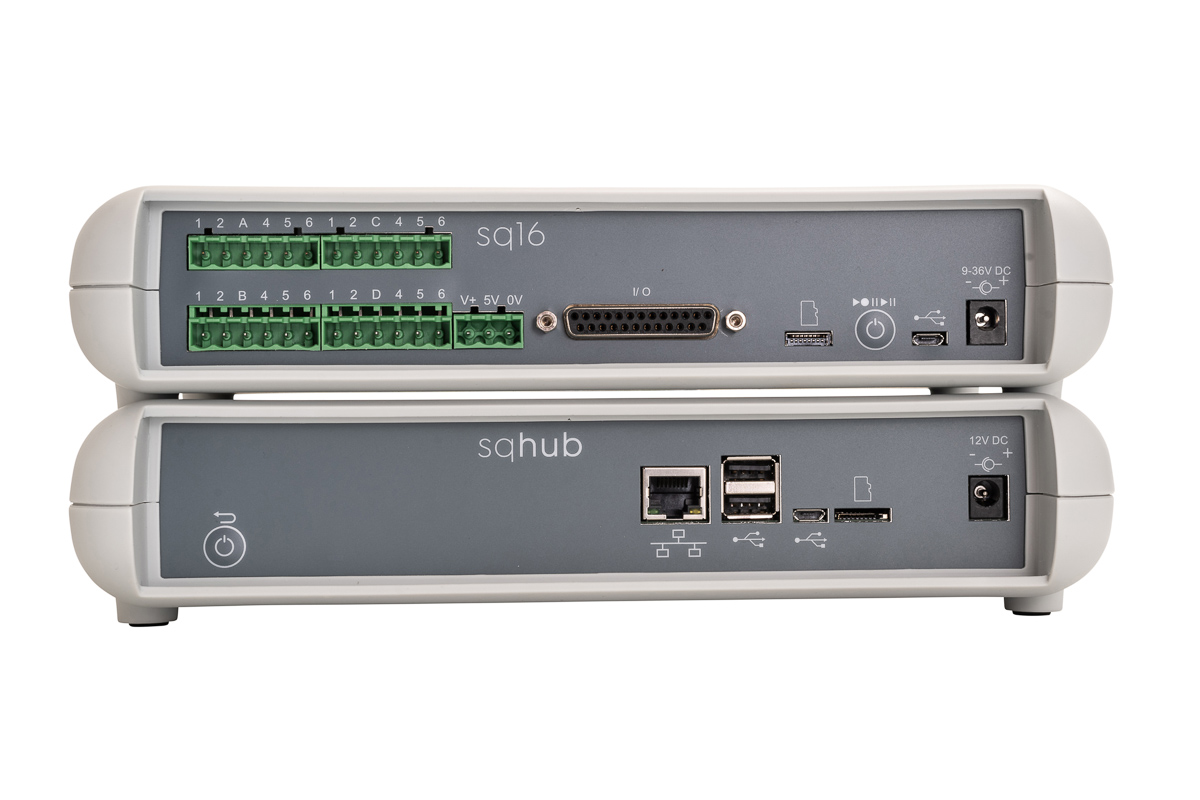

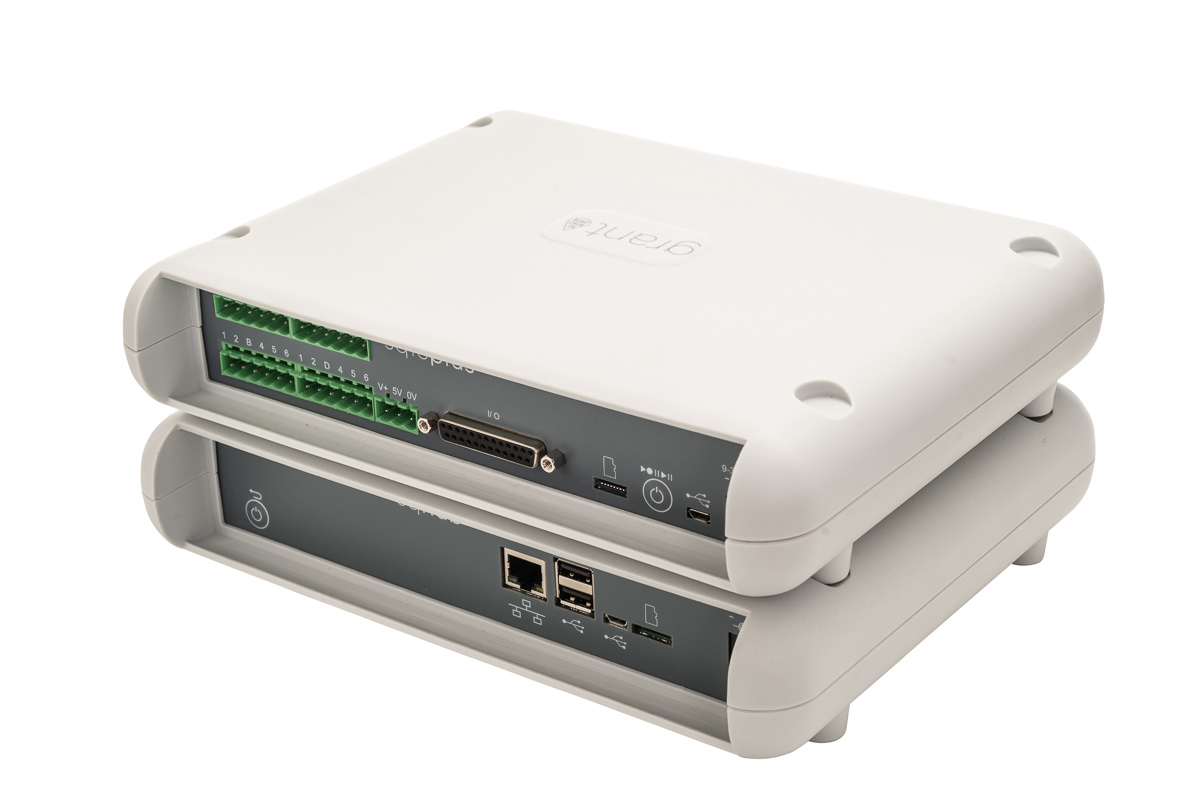

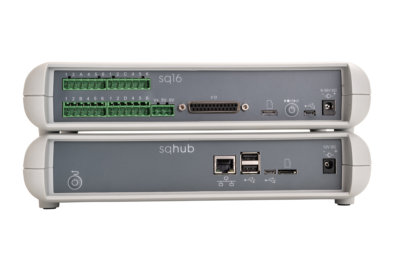

Extend your channels, stack to save space

Each logger has 8 differential channels and is easy to extend using the new SquirrelView software and sqhub. Multiple loggers may be linked, enabling up to 128 channels of data to be measured and monitored at any one time. Designed for stacking, saving you space and giving you the option to use multi channel logging.

Small in size, big in capability

Tough, technology lead loggers, designed to give fast and accurate data, store it safely and retrieve easily for precise reporting when you need it.

sq16 - 16 channels basic datalogger sq16 - 16 channels basic datalogger

Datalogger

sq16plus - 16 channels advanced datalogger sq16plus - 16 channels advanced datalogger

Datalogger

sq16pro - 16 channels advanced datalogger with internal hub sq16pro - 16 channels advanced datalogger with internal hub

Datalogger

sqhub - WiFi, Ethernet, Open Thread, Lora and 4G connections sqhub - WiFi, Ethernet, Open Thread, Lora and 4G connections

Datalogger

Mobile app - Mobile Android interface Mobile app - Mobile Android interface

Datalogger

SquirrelView - Software

Datalogger

Série Squirrel sq Multi channel data loggers with smart features and connectivity
sq16 16 channels basic datalogger
sq16plus 16 channels advanced datalogger
sq16pro 16 channels advanced datalogger with internal hub
sqhub WiFi, Ethernet, Open Thread, Lora and 4G connections
mobile app Mobile Android interface
Squirrelview Software

  • Squirrel sq16 Specification Sheet
  • Squirrel sq16plus Specification Sheet
