Synth300-TRIG - Two synchronized RF channels 300MHz

Main features

  • Uses Direct Digital Synthesis (DDS) technology
  • 2 independently programmable Analog outputs
  • 300 kHz to 300 MHz Clock & Sine wave Outputs
  • Programmable in 0.23 Hz Step Size
  • Standard “short” PCI card form factor
  • TTL, 220mV RMS Sine wave outputs standard .(Optional LVDS outputs)
  • Advanced switching capability for triggered frequency sweeping, Phase Shift Keying (PSK), Frequency Shift Keying (FSK), and more.
  • Software drivers for Windows 2000/ XP, RHEL Linux  plus GUI Interface
Clear
Price request Datasheet

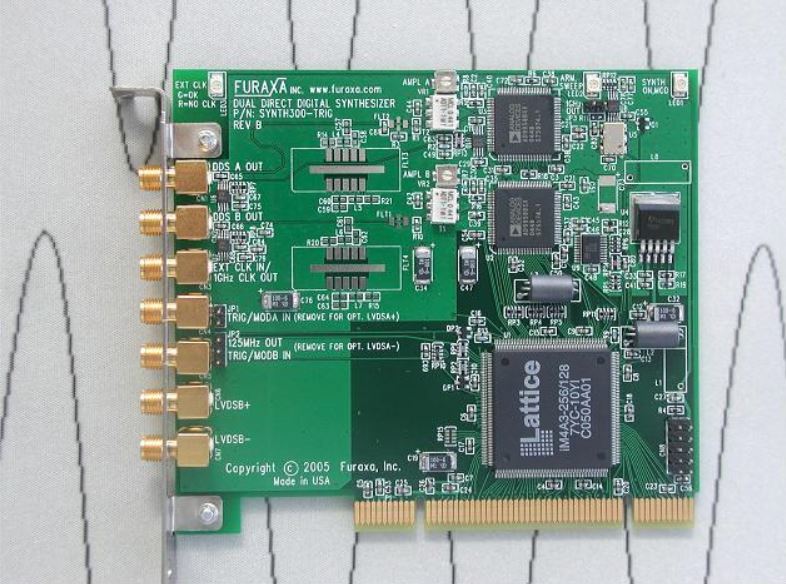

The Synth300-TRIG PCI dual-channel Direct Digital Synthesizers (DDS) card incorporates two independent DDSs synchronized at 1GHz, each separately programmable for frequencies between 300 KHz and 300 MHz in 0.233 Hz increments. In addition to single or dual tone RF generation (500mV into 50 ohms), the SYNTH300-TRIG can generate advanced RF signals such as triggered dwell/sweep/dwell quadrature swept signaling useful in RADAR, RF ATE, and other advanced applications. Additionally, by utilizing the 4 independent user-defined frequency/phase profiles associated with each synthesizer, frequency and/or phase modulated waveforms (4-FSK, 4-PSK) can be easily generated and controlled via software or external TTL inputs. In addition to its two sine-wave RF outputs, the Synth300-TRIG also includes an LVDS port, allowing the user to create a programmable digital clock with precise frequency and phase adjustment capability. It can be ordered with up to 2 such ports (model: Synth300-TRIG-LVDSX2), and will accept an external clock if desired.

Software provided includes a simple-to-use GUI to quickly configure most applications, as well as example C code to allow programming of advanced applications.

Each DDS-based synthesizer holds up to 4 independent frequency/phase profiles. Profile switching can be accomplished via host system software control or by external TTL frequency/phase profile switching inputs, allowing phase and/or frequency to be changed in as little as 8 nanoseconds, for applications in which the time uncertainty of software controlled frequency/phase selection is not acceptable.

SYNTH300-TRIG - Dual channel DDS board with two independent Direct Digital Synthesizers 300MHz

Standard

SYNTH300-TRIG (option LVDSX2+TTL) - Dual channel DDS board with two independent Direct Digital Synthesizers, LVDS and TTL

Option LVDSX2+TTL

SYNTH300-TRIG (option LVDSX2) - Dual channel DDS board with two independent Direct Digital Synthesizers, LVDS

Option LVDSX2

SYNTH300-TRIG-HS - Same as SYNTH300-TRIG with High stabilized oscillator

Option HS

SYNTH300-TRIGTwo synchronized RF channels 300MHz
SYNTH300-TRIG (option LVDSX2+TTL)Dual channel DDS board with two independent Direct Digital Synthesizers, LVDS and TTL
SYNTH300-TRIG (option LVDSX2)Dual channel DDS board with two independent Direct Digital Synthesizers, LVDS
SYNTH300-TRIG-HSSame as SYNTH300-TRIG with High stabilized oscillator
