XMC-16AI32SSC1M - 32-Channel, Differential, 16-Bit Simultaneous, 1MS/s XMC

Main features

  • 32 Differential analog inputs with dedicated 1.0MSPS 16-Bit ADC per channel
  • Sampling rates to 1.0MSPS per channel
  • Simultaneous sampling of all inputs; Minimum data skew
  • Software-Selectable Input ranges: ±10V, ±5V, ±2.5V or ±1.25V
  • Sync and clock I/O support external control and multiboard configurations
  • Time Tagging attaches time information to each input data value
  • Low Latency provides 32 registers that duplicate the most recent samples from all channels
  • Increased throughput capacity with local data packing
  • Continuous, burst and single-sample clocking modes
  • Hardware sync I/O for multiboard operation
  • 1 MByte FIFO data buffer; 512 K-Samples in packed-data mode
  • 2-Channel DMA engine
  • Conforms to PCI Express Specification revision 1.0a, x1 Link operating at 2.5Gbps
  • Sample rate controlled by internal rate generators, by software triggering, or externally
  • On-Demand internal Autocalibration of all channels
  • Same or Improved Performance Specifications as the PMC66-16AI32SSC
  • Same System I/O pinout as the PMC66-16AI32SSC, as configured for Time TaggingExist in PCIe, PCI, cPCI/PXI, PC104 and PMC
  • Exist also in PCIe, PCI, cPCI/PXI
Price request Datasheet

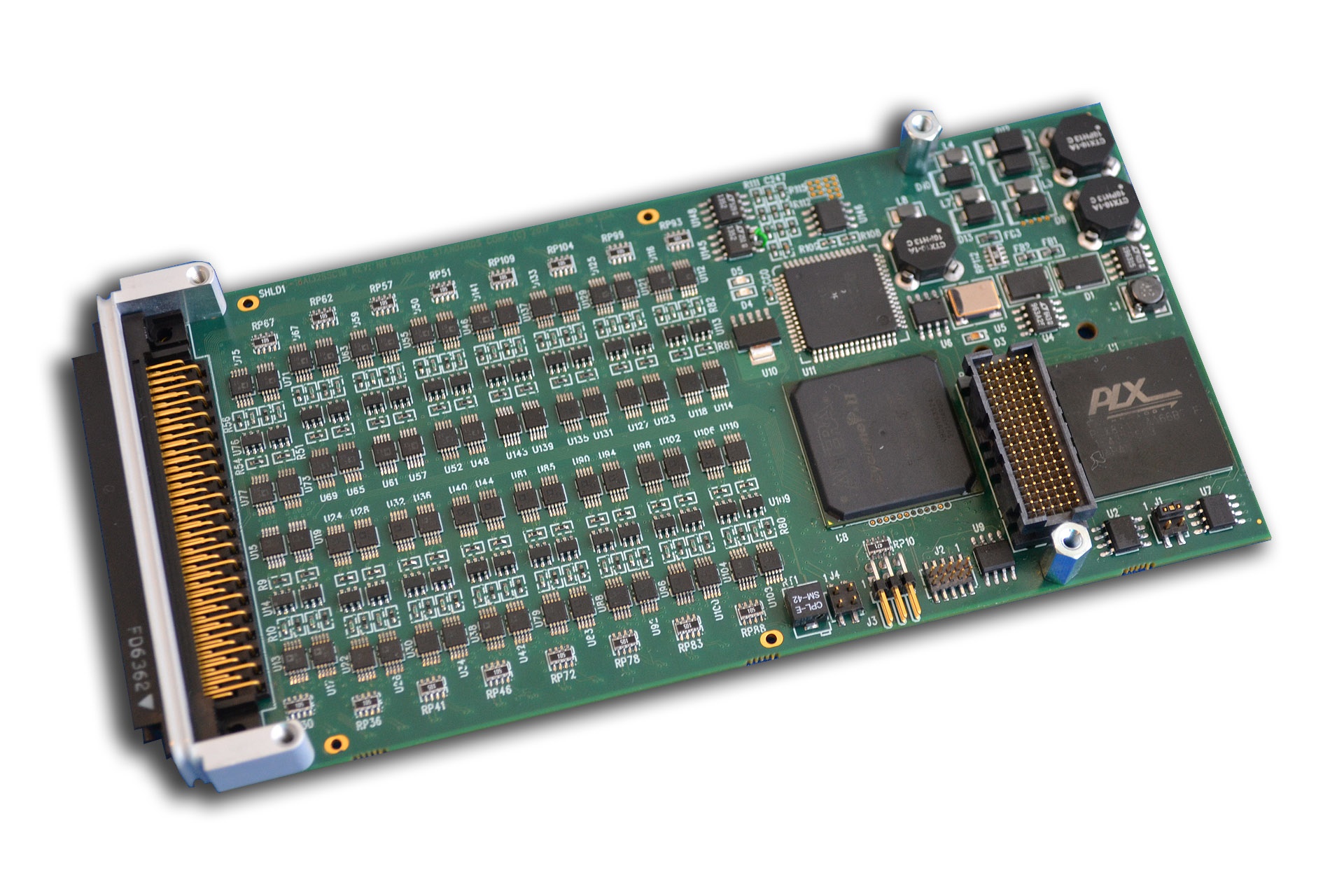

The 16-Bit XMC-16AI32SSC1M analog input board samples and digitizes up to 32 input channels simultaneously at rates up to 1 megasamples per second for each channel. Each input channel contains a dedicated 16-Bit sampling ADC, and the resulting sampled data is available to the PCI bus through a 1-MByte FIFO buffer. The 32-Bit local data path supports full D32 local-bus data packing. Throughput capacity is further enhanced with 66MHz PCI support. All operational parameters are software configurable.

Inputs can be sampled in groups of 2, 4, 16 or 32 channels; or any contiguous channel group can be selected for sampling. The sample clock can be generated from an internal rate generator, or by software or external hardware. Input ranges are software-selectable as ±2.5V, ±1.25V or ±0.625V.

An on-demand autocalibration feature determines offset and gain correction values for each input channel, and applies the corrections subsequently during acquisition. A selftest switching network routes calibration reference signals to each channel through internal selftest switches, and permits board integrity to be verified by the host..
