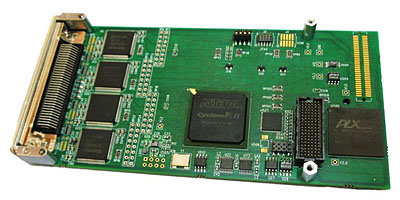

XMC-SIO4BX-SYNC - High-performance Serial I/O (to 10Mbits/ sec) XMC Board

Main features

  • One Lane XMC Interface
  • Four Independent Multi-Protocol Serial Channels
  • Independent Transmit and Receive FIFOs for each Serial Channel –32K byte each
  • Multi-protocol Transceivers support RS422/RS485, RS232, RS423
  • Fast RS422/RS485 Differential Cable Transceivers Provide Data Rates up to 10Mbps
  • RS423 and RS232 Cable Transceivers Provide Data Rates up to 230kbps
  • Two Signal (Clock/Data) or Three Signal modes (Clock/Data/Data Valid)
  • Programmable Oscillators provide increased flexibility for Baud Rate Clock generation
  • Programmable Transmit Bit Counts allow for various transmit word lengths
  • Programmable Transmit Gap Bit Counts allow for variable gap between words
  • Fully Programmable Polarity on all signals
  • Eight signals per channel, configurable as either DTE or DCE:
    3 Serial Clocks (TxC,RxC,AuxC), 2 Serial Data (TxD,RxD), 2 Data Valid (TxE,RxE), plus Spare
  • Unused signals may be reconfigured as General Purpose IO
  • SCSI type 68 pin front edge I/O Connector
  • Standard Cable to four DB25 connectors and Custom Cables available
  • Interchangeable 120Ω Termination Resistors (RS422/RS485 Mode)
Price request Datasheet Ask a question

The XMC-SI04BX-SYNC board is a four channel serial interface card which provides a simple synchronous serial interface capability for XMC applications. The SIO4BX-SYNC combines a flexible parallel/serial converter and 8 external FIFOs to provide four fully independent synchronous serial channels.

These features, along with a high performance XMC interface engine, give the XMC-SIO4BX-SYNC unsurpassed performance in a serial interface card. The SIO4BX-SYNC features software configurable cable transceivers (RS422, RS232 and others).
