The E&I 10M200 module is a rugged source of RF power. It produces 10 Watts of Class AB linear power output over the entire frequency range from 300 KHz – 200 MHz.
The 10M200 RF power is delivered by rugged LDMoS FETs, de-rated to provide for excellent MTBF figures.

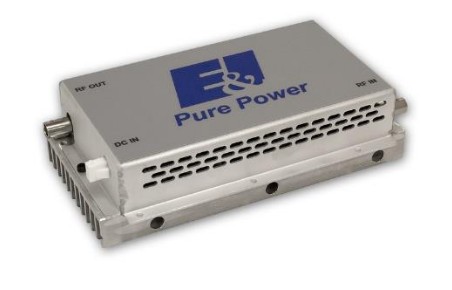

10M200 - 10 Watts RF Power amplifier
Main features
- Power (P1dB) 10 W
- Frequency range 0.3 to 200 MHz
- Power supply 24 VDC
- Gain 40 dB
- Harmonic <-20 dBc
| 10M200 | 10 Watts RF Power amplifier |
