15M30 - Module RF power amplifier 2MHz - 30MHz, 15 watts

Main features

  • Power (P1dB) 15 Watts
  • Frequency range 2 to 30 MHz
  • Power supply 24 VDC
  • Gain 40 dB
  • Harmonic -25 dBc
Price request Datasheet

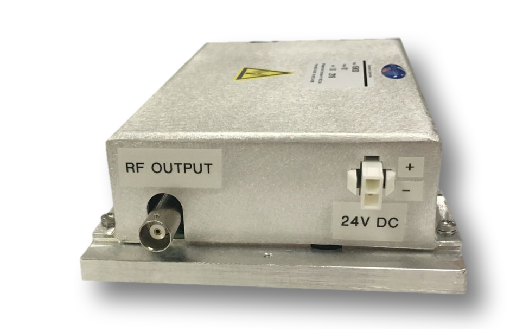

The 15M30 Amplifier Module  is a  rugged source of RF power. The compact module is a three stage RF amplifier it represents E&I’s commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.

The 15M30 produces 15Watts of Class A linear  power output over the entire frequency range from 2 to  30MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 40 dB with a typical gain flatness of +/-1.5 dB

The 15M30 accurately reproduces all waveforms within its power and frequency ranges: AM. FM, SSB, pulsed and other complex modulation schemes. The 15M30 is built to withstand a 13 dBm input (1.0Volt RMS).  The RF power is delivered by rugged LDMoS FETs, de-rated to provide for excellent MTBF figures.

15M30Module RF power amplifier 2MHz - 30MHz, 15 watts
