2105 - DC - 300KHz Linear Power amplifier

Main features

  • Small Signal Frequency Response
    DC – 300 kHz +0.5 to -0.5 dB
  • 8 ohm Power Response
    ± 140 Volts pk DC to 60 kHz
    ± 50 Volts pk DC to 180 kHz
    ± 30 Volts pk DC to 300 kHz
  • Multiple Amplifier Series and Parallel operation
  • Residual Noise
    Unfiltered: Less than 75µvolts
    Filtered: 400 Hz – 30 kHz Less than 55 µvolts
  • THD
    DC to 30 kHz less than 0.1%
  • Output offset
    Less than 5 µVolts, field adjustable to less than 1 µVolt
  • Phase Response
    ± 5 degrees (10 Hz – 10 kHz) plus 560 nsec propagation delay
  • Max Input Voltage
    ± 10 V either balanced or unbalance
  • Common Mode Rejection
    -58 dB with 5 Volt input
Price request Datasheet

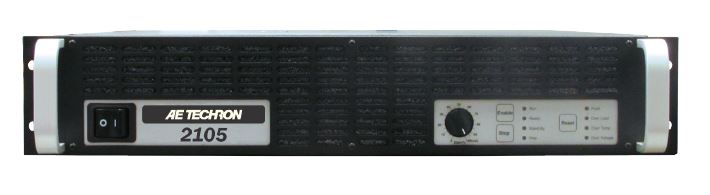

The 2105 offers the power and features of larger industrial amplifiers in a new smaller 2U size that runs from single phase power. It features DC – 300 kHz bandwidth, controlled current or controlled voltage modes of operation and has a wide range of field configurable options.

The 2105 is a 1 kVA DC enabled AC amplifier that can be configured by the customer for High Voltage/Low Current, Medium Voltage and Current or Low Voltage/High Current applications.

The 2105 can be connected (with optional input card) to other 2105 amplifiers to create systems with greater capabilities.
Multiple Amplifier Series Operation:
Increased voltages possible 150 Vpk, 300 Vpk, 450 Vpk or 600 Vpk
Increased slew rate up to 200 V/uSec
Multiple Amplifier Parallel Operation:
Increased current possible 50 Apk, 100 Apk, 150Ap or 200 Apk
