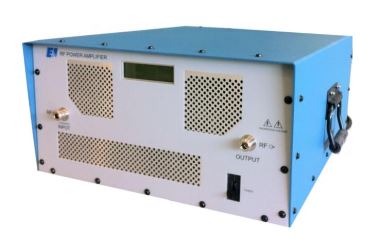

3100L - RF amplifier 250KHz - 150MHz, 100 watts

Main features

  • 250 KHz to 150 MHz
  • Instantaneous Bandwidth
  • 100 W 1dB Compression
  • Solid State  Air Cooled
Price request Datasheet

The 3100L Amplifier is a rugged source of RF power, useful for RFI/EMI, HF and VHF transmitters, plasma equipment, nuclear accelerators and general laboratory applications. The 31 00L represents E&Iís commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.

The E&I 3100L RF Power Amplifier produces 100 Watts of class A linear power output over the entire frequency range from 250 KHz to 150 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 50 dB with a typical gain flatness of +/- 1.5 dB The E&I 3100L RF Power Amplifier is compatible with most signal generators, frequency synthesizers, sweep generators and other laboratory signal sources. It accurately reproduces all waveforms within its power and frequency ranges: AM. FM, SSB, pulsed and other complex modulation schemes.

The E&I 3100L RF Power Amplifier is built to withstand a 13 dBm input (1.0 Volt RMS) for any VSWR load condition. The internal switched mode power supply is very conservatively rated, in order to facilitate operation over a large range of line conditions and temperatures. The forced air cooling provides for low internal temperatures, providing long term reliability. The RF power is delivered by rugged DMoS FETs, de-rated to provide for excellent MTBF figures.
