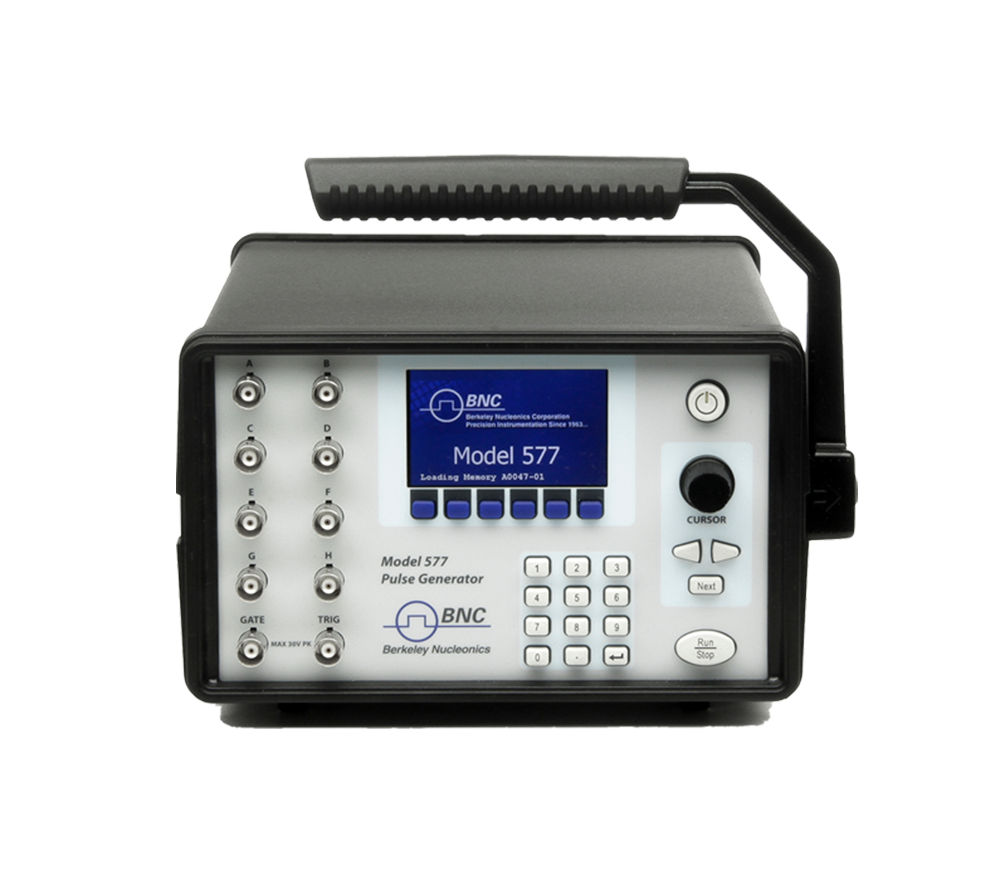

577 - Digital Delay / Pulse Generator

Main features

  • 250pS Delay & Width Resolution on 8 channels
  • 50pS channel Jitter / 800pS RMS Ext. jitter
  • Independent clock rates for each channel
  • Clock In & Clock Out
  • Programmable (Ethernet/USB/RS-232/GPIB)
  • Combine Electrical and Optical Outputs • Dual Inputs ( Gate+Trig / 2 Trig)
Price request Datasheet Ask a question

The Model 577 provides multi-channel 250 ps resolution timing, delaying, gating, pulsing and syncing functions for an attractive price. There are many practical modes of operation and features in addition to the traditional digital delay and pulse generator modes. For usefulness and value – there is nothing comparable.

Each channel provides both delays and widths – so a 4-channel Model 577 provides the same delay and width functionality of competitive 8-channel units. The 577 is available in 4 and 8 channel configurations, with optional Ethernet, High Voltage and Dual Input Trigger options.

This Digital Delay/Pulse Generator, representing our finest in precision timing, provides precise delays and widths with 250 ps resolution for times up to 1000 seconds. Low jitter both with internal clocks (50 ps) and using an external trigger (800 ps) give users the timing needed to control many devices. This is particularly useful where several pulses or gate signals need to be delayed and timed with respect to each other or the common trigger. You may even use one channel as a trigger reference for other channels, locking the timing delays when needed. There is lots to learn about the Model 577, which offers much more than a clock-divider, independent channel triggering, independent amplitudes/channel, delay and width control, and a LabView 8 driver. Give us a call, we are happy to discuss your applications.

577-4C - 4-Channel Digital Delay Generator USB Standard

577

577-8C - 8-Channel Digital Delay Generator USB Standard

577

577-AT20 - TTL/Adjustable 20V Electrical Output (price per bank of 2 channels)

577

577-AT35 - TTL/Adjustable 35V Electrical Output (price per bank of 2 channels)

577

577-AT45 - TTL/Adjustable 45V Electrical Output (price per bank of 2 channels)

577

577-L82 - 820nm Optical Output (price per bank of 2 channels)

577

577-L130 - 1300nm Optical Output (price per bank of 2 channels)

577

577-TZ35 - TTL 50 Ohm Match/35V Adj Output (price per bank of 2 channels)

577

577-TZ50 - TTL 50 Ohm Match/50V Adj Output (price per bank of 2 channels)

577

577-IA15 - Electrical 15v Adjustable Input

577

577-DT-15 - Dual Trigger 15V Adjustable Input

577

577-COM - Add GPIB and Ethernet communication

577

577-P/N6923 - 19" Rack Mount for Model 577 - Single

577

577-P/N6978 - Rack Mount for Model 577 - Double

577

577 Digital Delay / Pulse Generator
577-4C 4-Channel Digital Delay Generator USB Standard
577-8C 8-Channel Digital Delay Generator USB Standard
577-AT20 TTL/Adjustable 20V Electrical Output (price per bank of 2 channels)
577-AT35 TTL/Adjustable 35V Electrical Output (price per bank of 2 channels)
577-AT45 TTL/Adjustable 45V Electrical Output (price per bank of 2 channels)
577-L82 820nm Optical Output (price per bank of 2 channels)
577-L130 1300nm Optical Output (price per bank of 2 channels)
577-TZ35 TTL 50 Ohm Match/35V Adj Output (price per bank of 2 channels)
577-TZ50 TTL 50 Ohm Match/50V Adj Output (price per bank of 2 channels)
577-IA15 Electrical 15v Adjustable Input
577-DT15 Dual Trigger 15V Adjustable Input
577-COM Add GPIB and Ethernet communication
577-P/N6923 19" Rack Mount for Model 577 - Single
577-P/N6978 Rack Mount for Model 577 - Double
