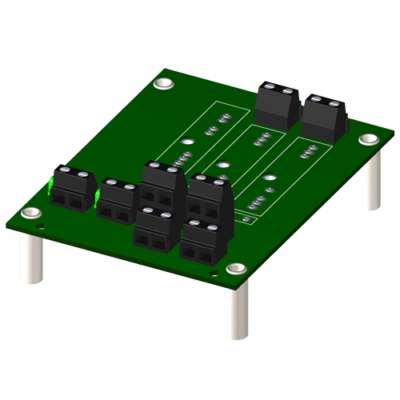

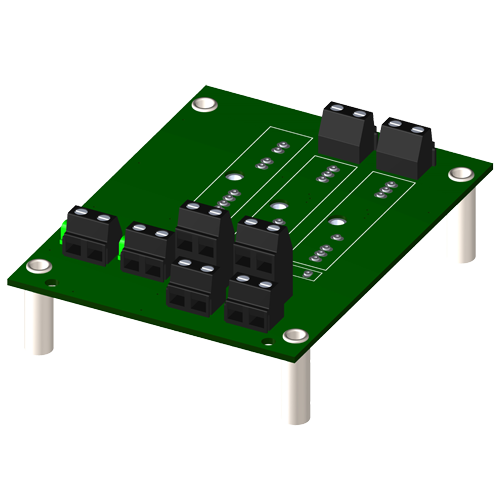

8BP02 - Standard 2-channel backpanel with standoffs for mounting.

Main features

  • 2 Slots for 8B signal conditioners
  • Input Voltage Range 24V
  • Isolation
    • Input-to-Output 1500Vrms continuous, max
    • Channel-to-Channel 1500Vrms continuous, max
Clear
Price request Datasheet

The 8BP02 backpanels can accept any of the 8B analog I/O modules in any mixture and can be mounted on the SCMXRK-002 19-inch metal rack. Analog I/O signal channels provide each module with its own analog bus. All module outputs are simultaneously accessible to high speed data acquisition (ADC) boards. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules. Field connections are terminated with four screw terminals at each module site. Use system interface cable SCMXCA006-XX  for connection to the host system.

8BP02-1 - 8BP02 without cold junction compensation sensor

Backpanel

8BP02-2 - 8BP02 with DIN rail mounting option

Backpanel

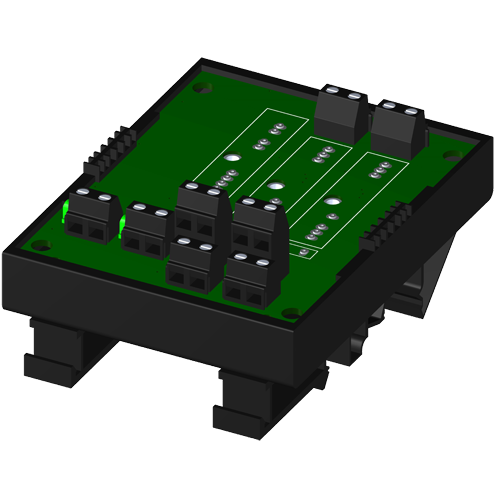

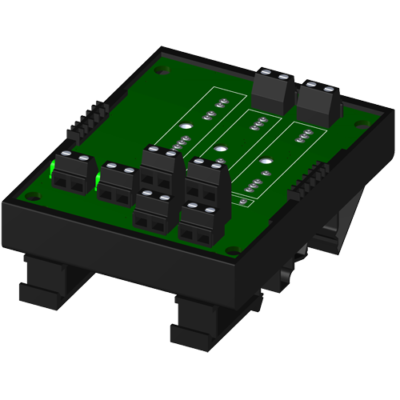

8BP02-3 - 8BP02-1 with DIN rail mounting option

Backpanel

8BP02Standard 2-channel backpanel with standoffs for mounting.
8BP02-18BP02 without cold junction compensation sensor
8BP02-28BP02 with DIN rail mounting option
8BP02-38BP02-1 with DIN rail mounting option
