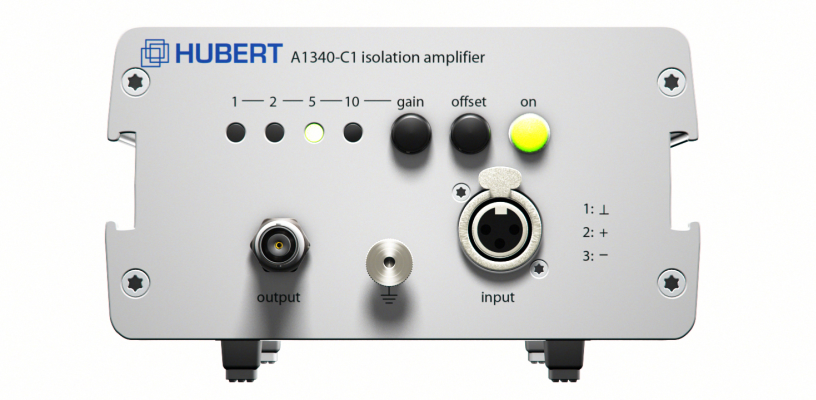

A 1340-C1 - Isolation amplifier

Main features

  • 3-port isolation amplifier (input, output, USB/network) with optionally selectable input and output potentials
  • Input instrument amplifier with high-power common-mode suppression and switchable gain of 1, 2, 5 or 10
  • Great small-signal band width from DC to > 1.7 MHz
  • High slew rate of > 20 V/μs
  • Purely analog signal transmission, i.e. no switching signals in the output signal
  • Low output noise of < 1 mVpp
  • High input resistance > 1 MΩ for low source load
  • High offset stability achieved through temperature control of the offset variables
  • Automatic offset compensation possible at any time at the push of a button
  • Full remote control via USB interface (emulated COM port) optional
Price request Datasheet

The A1340-C1 is a 3-port isolation amplifier (input, output, USB/network) with optionally selectable input and output potentials. The A1340-C1 is equipped with an input instrument amplifier with high common mode suppression. The input gain can be optionally selected between 1, 2, 5, and 10 by means of a push button.

The great small-signal band width from DC to > 1.7 MHz ensures excellent signal reproduction. A slew rate of > 20 V/μs allows for great large-signal band widths. Through purely analog signal transmission, the output signal is free from cycle and switching signals.

High offset stability is achieved through temperature control of the offset variables. Automatic offset compensation is possible at any time at the push of a button. Moreover, the A1340-C1 can be completely remote-controlled via a USB interface (emulated COM port).
