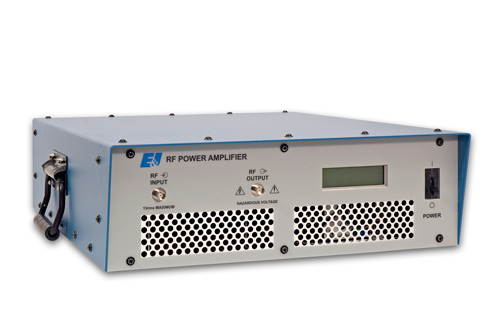

A075 - RF amplifier 300KHz - 35MHz, 75 watts

Main features

  • 300 KHz to 35 MHz
  • Instantaneous Bandwidth
  • 75 W 1dB Compression
  • Solid State
  • Air Cooled
Price request Datasheet

The A-075 Amplifier is a rugged source of RF power, useful for ultrasonics, HF transmitters, RFI/EMI, plasma equipment and general laboratory applications.
The A-075 represents E&I’s commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.

The A-075 RF Power Amplifier produces 75 Watts of class A linear power output over the entire frequency range from 300 KHz to 35 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 50 dB with a typical gain flatness of +/- 1.5 dB.
The A-075 RF Power Amplifier is compatible with most signal generators, frequency synthesizers, sweep generators and other laboratory signal sources. It accurately reproduces all waveforms within its power and frequency ranges: AM. FM, SSB, pulsed and other complex modulation schemes.

The A-075 RF Power Amplifier is built to withstand a 13 dBm input (1.0 Volt RMS) for any VSWR load condition.  The internal switched mode power supply is very conservatively rated, in order to facilitate operation over a large range of line conditions and temperatures. The forced air cooling provides for low internal temperatures, providing long term reliability. The RF power is delivered by rugged DMoS FETs, de-rated to provide for excellent MTBF.
