iAMP1600047-R - 2 Channel 50 W Power Amplifier with CW and Pulse Generator

Main features

  • 2 Channel 50 W Power Amplifier with CW and Pulse Generator
  • 1 MHz … 6000 MHz
  • Compact 19”, 5U device
  • 2 equivalent RF outputs (both offer full bandwidth)
  • High output level precision and long time stability
  • VSWR monitoring
  • Internal CW and pulse generator (2nd generator as option)
  • Graphical user interface (GUI)
Price request Datasheet Ask a question

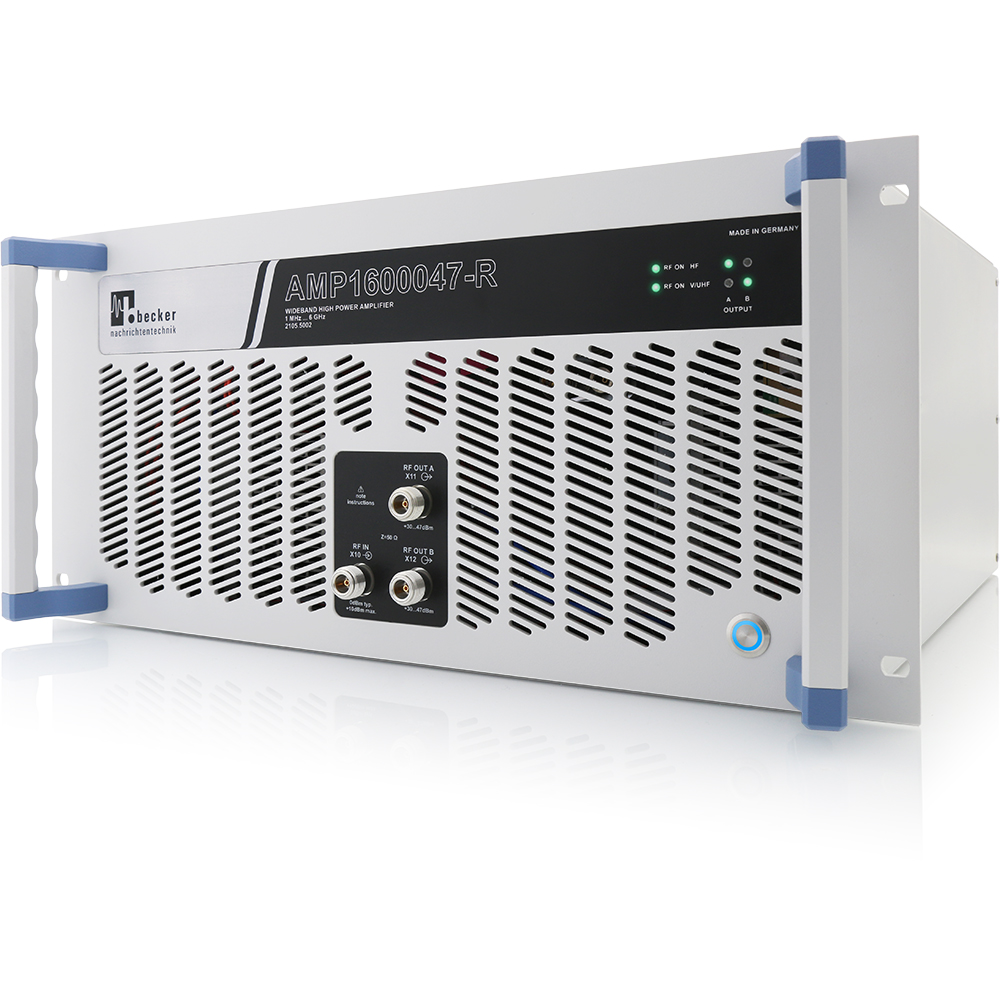

With the iAMP1600047-R, we offers an all-in-one semiconductor-based power amplifier. The device delivers up to 50 W output power in the frequency range from 1 MHz to 6000 MHz.

The amplifier has two separate outputs, one for the HF range (1 MHz to 30 MHz) and one for the V/UHF range (30 MHz … 6000 MHz), whose assignment to the frequency ranges can be freely selected by the user via the device software . The output power can be set independently for both channels in the range from 1 W (+30 dBm) to 50 W (+47 dBm) in fine increments.

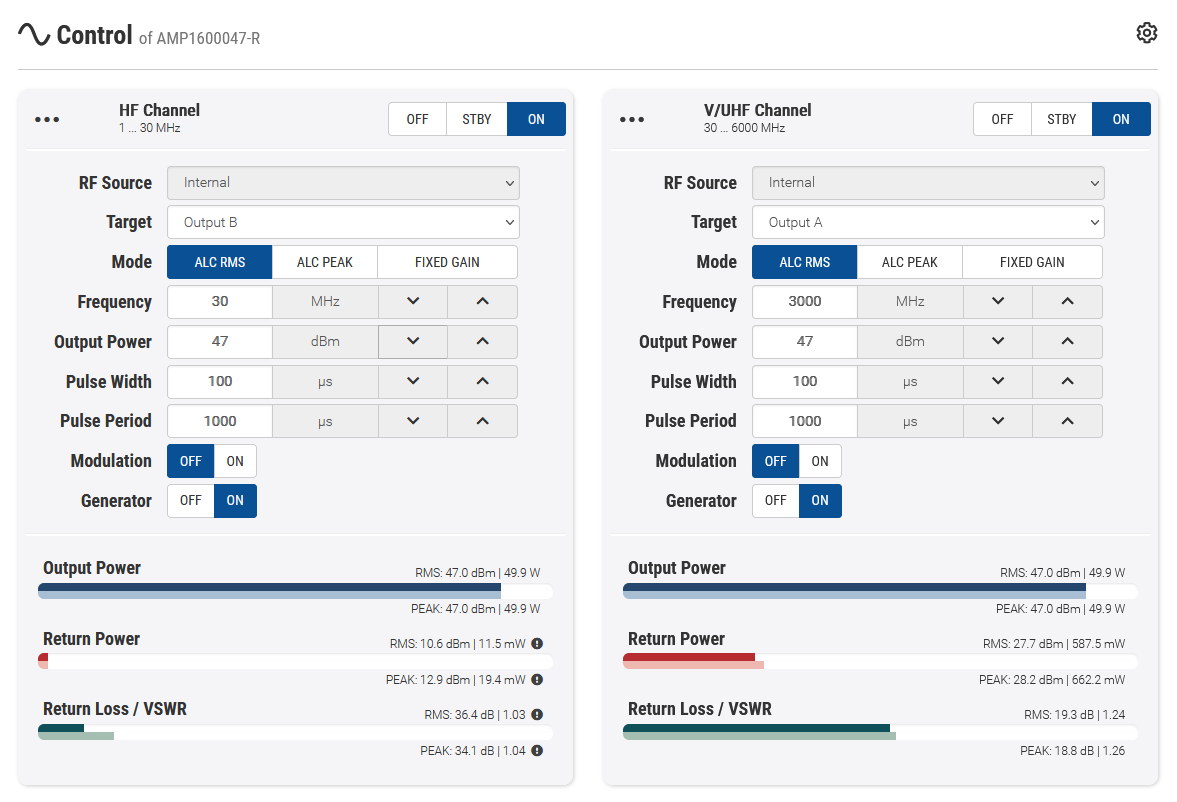

Internal level controls, so-called ALCs (Automatic Level Controls), ensure precise and long-term stable output power and eliminate temperature influences, fluctuating input levels and VSWR influences. The iAMP1600047-R also has an internal generator for CW and pulse signals. The software functions of the can be conveniently controlled via the web interface or via ASCII commands. The amplifier is equipped with a robust stainless steel housing. All amplifier models of the AMP series are designed in 50 Ohm technology.

iAMP1600047-R 2 Channel 50 W Power Amplifier with CW and Pulse Generator
