The wideband amplifier module AMP3060036 is designed for low distortion amplification of analog- and digital modulated signals.
Due to the high bandwidth, the amplifier modules are suitable for the transmission of FM, DAB3, DVB-T as well as BOS and TETRA signals.
Due to the high output power in combination with best linearity characteristics (IP3) the amplifier is suitable for professional applications where digitally modulated signals have to be amplified without distortion.
The AMP3060036 has an internal self-monitoring function for power consumption and module temperature. The status of the self-test can be queried via potential-free signal contacts.
An integrated high-pass filter suppresses unwanted signals in the lower frequency range. The amplifier has an internal reverse polarity protection for the operating voltage. The module is designed for mounting on an external heat sink.

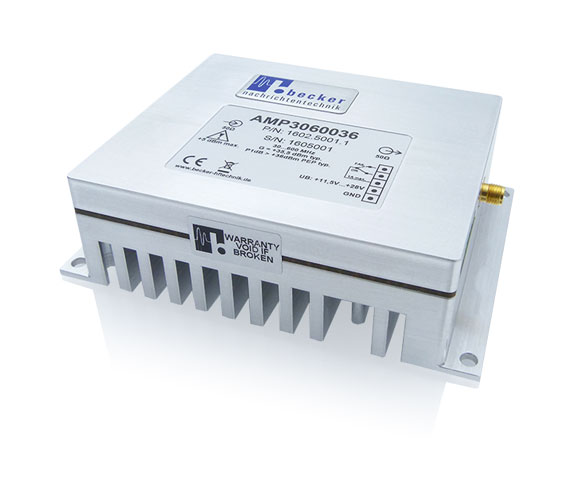

The amplifier module AMP3060036 is mounted in an aluminium housing. In addition to protection against mechanical damage, this offers the best shielding to suppress EMC influences from RF signals from the environment.
