AMP40100034-R - 4 Watts Wideband Amplifier 19” Device 40 to 1000MHz

Main features

  • 45 to 1000 MHz
  • 4 watts
  • Output power +36dBm peak typ
  • Open/short stable
  • FWD and REV power ports
  • VLF suppression
  • AC mains supply
Price request Datasheet Ask a question

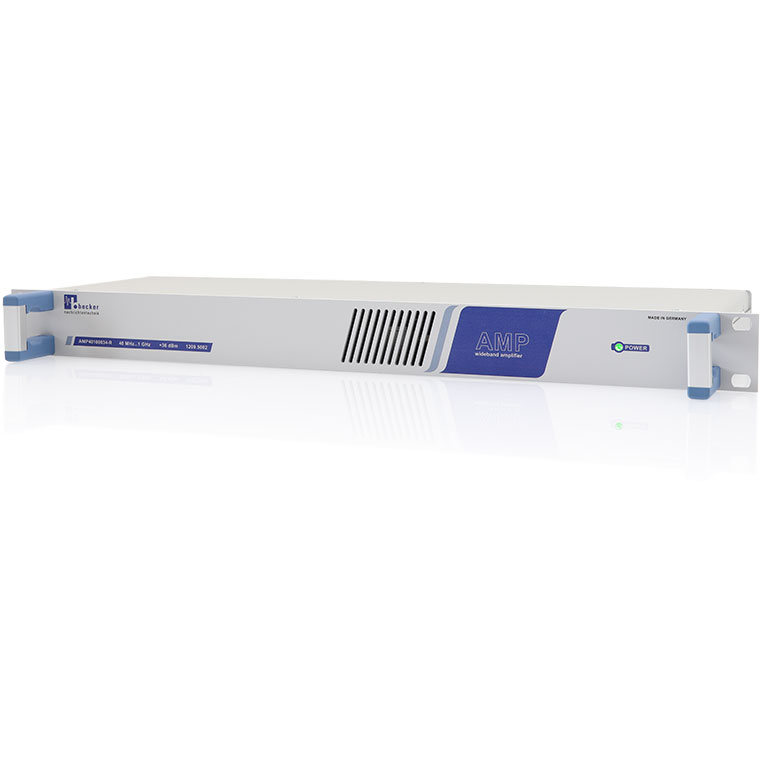

AMP40100034-R is a wideband amplifier in 19“, 1 U design with an output power capability of up to 4 watts in 50 Ohm technology. It is suitable for the frequency range 40 MHz to 1000 MHz. An internal high pass filter suppresses signals in the VLF frequency range. Via the internal directional coupler the forward and reflected power and frequency spectrum can be monitored during operation.

The output stage in the AMP40100034-R is a class A-B amplifier. Thereby the device combines high efficiency with good linearity. Applications are research and development (R&D), ISM (Industrial, Scientific and Medical Bands) and applications where broadcast signals are amplified to medium power level.

AMP40100034-R 4 Watts Wideband Amplifier 19” Device 40 to 1000MHz
