AMP5270026 - 400 mW High Dynamic Amplifier Module 5 to 2700 MHz

Main features

  • 5 to 2700 MHz
  • 400 mWatts
  • Output power +26dBm peak typ
  • High OIP3 +46dBm typ
  • LF/HF suppression
  • Wide DC supply range
  • Optical power and status indication
Price request Datasheet Ask a question

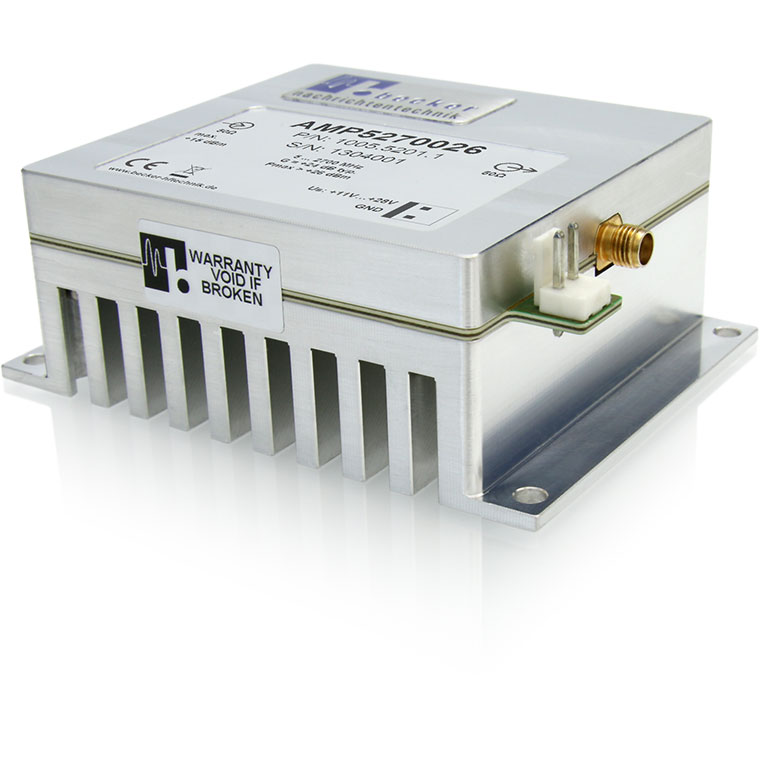

AMP5270026 is a wideband amplifier with up to 400 mW output power suitable for the frequency range 5 MHz to 2700 MHz. It offers high gain and good linearity characteristics. The amplifier module is designed for frequencies of the VHF and the UHF band.

AMP5270026 amplifies signals in the frequency range 5 MHz to 2700 MHz. This amplifier features a low noise figure, high gain and good linearity characteristics. It is especially suited for use in VHF/UHF applications. An internal highpass filter located at the input of the amplifier avoids influences of signals in the low frequency range.

As the AMP5270026 is designed as a module, it can be operated in multiple ways, for example as laboratory equipment or in devices. Its case is made of aluminium and offers passive cooling. For operation at room temperature, the amplifier does not require any active cooling. As a result, AMP5270026 is a compact amplifier for versatile use making additional effort of cooling unnecessary. It also offers a wide DC supply range from +11 V to +28 V.
This amplifier module is equipped with a straight power connector. For use in flat devices (1 U), AMP5270026 is also available with an angled power connector.

This amplifier module offers excellent RF characteristics covered in compact and robust module design. In addition to the solid design of the mechanics, the amplifier is also resistant against mismatches which can occur in operation with complex loads. Additionally, AMP5270026 offers reverse polarity protection.

Also availabl ein Laptop Version

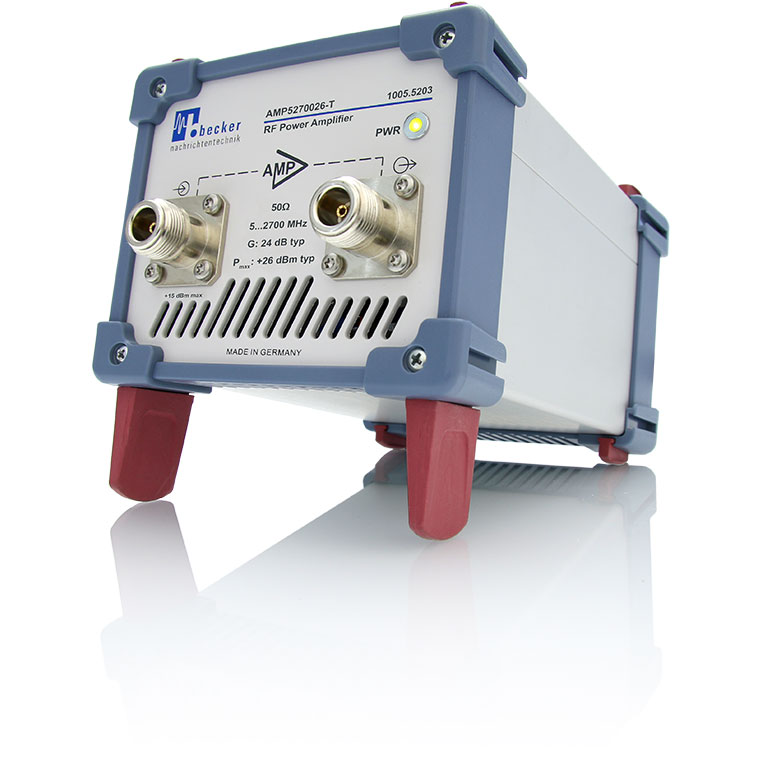

AMP5270026-T - Laptop Version

Amplifier

AMP5270026 400 mW High Dynamic Amplifier Module 5 to 2700 MHz
AMP5270026-T Laptop Version

  • AMP5270026-T
