AMP590033 - 2 W Booster Amplifier Module, 5 to 900 MHz

Main features

  • 2 W Booster Amplifier Module
  • 5 to 900 MHz
  • Output power+34 dBm typ
  • High OIP3+49 dBm typ
  • Open/short stable
  • Wide DC supply range
  • Optical supply indication
  • Reverse polarity protected
Price request Datasheet Ask a question

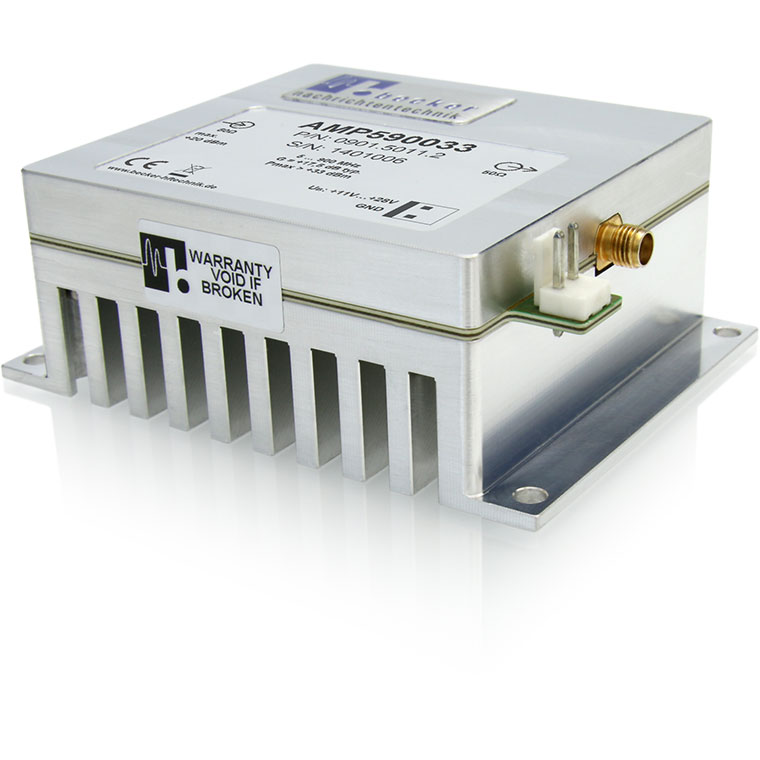

AMP590033 is a wideband amplifier with up to 2 W output power suitable for the frequency range 5 to 900 MHz. Due to its high linearity the amplifier is suitable for use as booster for digitally modulated signal sources. The amplifier design is optimized for high efficiency.

Due to the high output power, the amplifier is suitable for professional applications where signals must be amplified with low distortion. The amplifier has a wide power supply range and internal reverse polarity protection. The integrated heat sink allows passive cooling of the module.

Also available in Laptop version, AMP590033-T

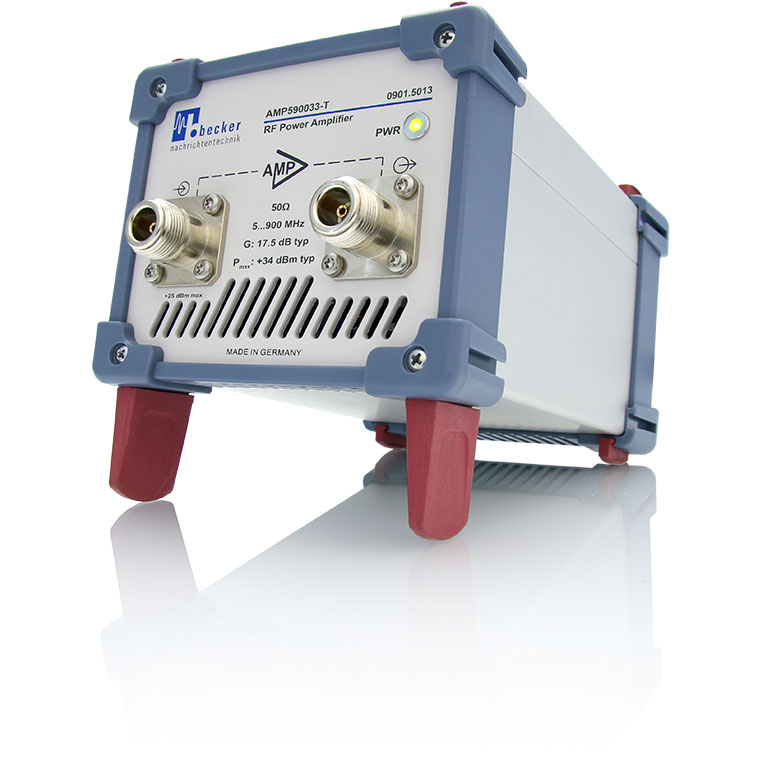

AMP590033-T - Laptop version

Amplifier

AMP590033 2 W Booster Amplifier Module, 5 to 900 MHz
AMP590033-T Laptop version

  • AMP590033-T
