APX-5640 - High speed data acquisition board, 12-Bit, 6.4GS/s, PCI Express

Main features

  • 1 or 2 digitizing channels
  • 3.2GS/s maximum sampling per channel (6.4GS/s interleave)
  • 12 bits vertical resolution
  • >3GHz bandwidth
  • Single-slot PCI Express card
  • 2G Samples/Channel
  • ENOB (SINAD) = 8.5 bit@3200MSps, Fin10MHz
  • +/- 0.5V Input range
  • SoftwareSoftware Development Kits available for LabVIEW, C/C#
Price request Datasheet Ask a question

The high speed data acquisition boards APX-5640 provide in 12-bit high Effective Number of Bits (ENOB (SINAD)) performance at high signal frequency.

The APX-5640 PCIe bus digitizer features 2 Channels 12-bit vertical resolution, 3.2GS/s sampling (6.4GS/s interleave), and bandwidth greater than 3GHz

The fast sampling rate enables the capture of high-speed signals with ultra-high timing precision. The high resolution allows the capture of signals with very high dynamic range. Available with up to 4 GB of on-board memory.

General purpose Analog output 2 Channels – 16-Bit are also available

Software Development Kits for C/C# and LabVIEW are available for custom development.

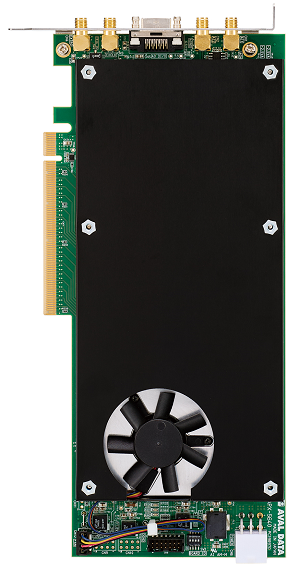

APX-5640 High speed data acquisition board, 12-Bit, 6.4GS/s, PCI Express
