DSCA33 - Isolated True RMS Input Signal Conditioners

Main features

  • Interfaces RMS Voltage (0 – 300V) or RMS Current (0 – 5A)
  • Designed for Standard Operation with Frequencies of 45Hz to 1000Hz (Extended Range Operation to 20kHz)
  • Compatible with Standard Current and Potential Transformers
  • Industry Standard Output of either 0-1mA, 0-20mA, 4-20mA, 0-5V, or 0-10VDC
  • ±0.25% Factory Calibrated Accuracy (Accuracy Class 0.2)
  • ±5% Adjustable Zero and Span
  • 1500Vrms Transformer Isolation
  • Input Overload Protected to 480V (Peak AC & DC) or 10A RMS Continuous
  • ANSI/IEEE C37.90.1 Transient Protection
  • Easily Mounts on Standard DIN Rail
  • C-UL-US Listed
  • CE and ATEX Compliant
Clear
Price request Datasheet

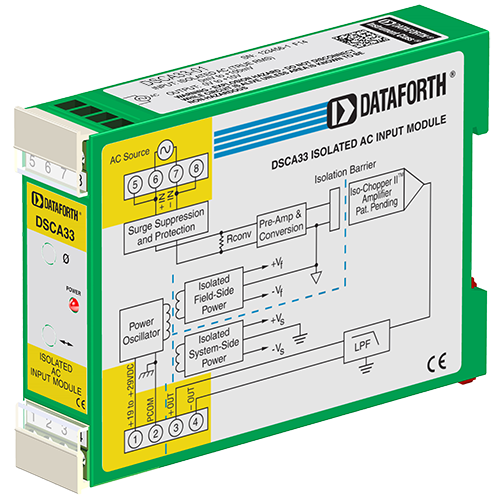

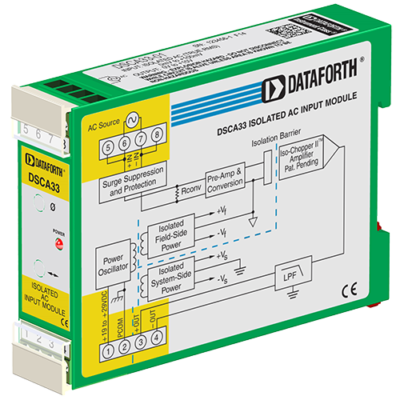

Each DSCA33 True RMS input module provides a single channel of AC input which is converted to its True RMS DC value, filtered, isolated, amplified, and converted to standard process voltage or current output.

The field voltage or current input signal is processed through an AC coupled pre-amplifier and RMS converter on the field side of the isolation barrier. The converted dc signal is then filtered and chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The computer side circuitry reconstructs, filters and converts the signal to industry standard outputs.

Module output is either voltage or current. For current output models a dedicated loop supply is provided at terminal 3 (+OUT) with loop return located at terminal 4 (-OUT). The system-side load may be either floating or grounded.

Special input circuits provide protection against accidental connection of power-line voltages up to 480VAC and against transient events as defined by ANSI/IEEE C37.90.1. Protection circuits are also present on the signal output and power input terminals to guard against transient events and power reversal. Signal and power lines are secured to the module using screw terminals which are pluggable terminal blocks for ease of system assembly and reconfiguration.

DSCA33 modules have excellent stability over time and do not require recalibration, however, both zero and span settings are adjustable to accommodate situations where fine tuning is desired. The adjustments are made using potentiometers located under the front panel label and are non-interactive for ease of use.

.

DSCA33-01 - Input Range: 0 to +100 mV Output Range: 0 to +10 V

DSCA

DSCA33-01A - Input Range: 0 to +100 mV Output Range: 0 to +5 V

DSCA

DSCA33-01B - Input Range: 0 to +100 mV Output Range: 0 to 1 mA

DSCA

DSCA33-01C - Input Range: 0 to +100 mV Output Range: 4 to 20 mA

DSCA

DSCA33-01E - Input Range: 0 to +100 mV Output Range: 0 to 20 mA

DSCA

DSCA33-02 - Input Range: 0 to +1 V Output Range: 0 to +10 V

DSCA

DSCA33-02A - Input Range: 0 to +1 V Output Range: 0 to +5 V

DSCA

DSCA33-02B - Input Range: 0 to +1 V Output Range: 0 to 1 mA

DSCA

DSCA33-02C - Input Range: 0 to +1 V Output Range: 4 to 20 mA

DSCA

DSCA33-02E - Input Range: 0 to +1 V Output Range: 0 to 20 mA

DSCA

DSCA33-03 - Input Range: 0 to +10 V Output Range: 0 to +10 V

DSCA

DSCA33-03A - Input Range: 0 to +10 V Output Range: 0 to +5 V

DSCA

DSCA33-03B - Input Range: 0 to +10 V Output Range: 0 to 1 mA

DSCA

DSCA33-03C - Input Range: 0 to +10 V Output Range: 4 to 20 mA

DSCA

DSCA33-03E - Input Range: 0 to +10 V Output Range: 0 to 20 mA

DSCA

DSCA33-04 - Input Range: 0 to +150 V Output Range: 0 to +10 V

DSCA

DSCA33-04A - Input Range: 0 to +150 V Output Range: 0 to +5 V

DSCA

DSCA33-04B - Input Range: 0 to +150 V Output Range: 0 to 1 mA

DSCA

DSCA33-04C - Input Range: 0 to +150 V Output Range: 4 to 20 mA

DSCA

DSCA33-04E - Input Range: 0 to +150 V Output Range: 0 to 20 mA

DSCA

DSCA33-05 - Input Range: 0 to 300 V Output Range: 0 to +10 V

DSCA

DSCA33-05A - Input Range: 0 to 300 V Output Range: 0 to +5 V

DSCA

DSCA33-05B - Input Range: 0 to 300 V Output Range: 0 to 1 mA

DSCA

DSCA33-05C - Input Range: 0 to 300 V Output Range: 4 to 20 mA

DSCA

DSCA33-05E - Input Range: 0 to 300 V Output Range: 0 to 20 mA

DSCA

DSCA33-06 - Input Range: 0 to 1 A Output Range: 0 to +10 V

DSCA

DSCA33-06A - Input Range: 0 to 1 A Output Range: 0 to +5 V

DSCA

DSCA33-06B - Input Range: 0 to 1 A Output Range: 0 to 1 mA

DSCA

DSCA33-06C - Input Range: 0 to 1 A Output Range: 4 to 20 mA

DSCA

DSCA33-06E - Input Range: 0 to 1 A Output Range: 0 to 20 mA

DSCA

DSCA33-07 - Input Range: 0 to 5 A Output Range: 0 to +10 V

DSCA

DSCA33-07A - Input Range: 0 to 5 A Output Range: 0 to +5 V

DSCA

DSCA33-07B - Input Range: 0 to 5 A Output Range: 0 to 1 mA

DSCA

DSCA33-07C - Input Range: 0 to 5 A Output Range: 4 to 20 mA

DSCA

DSCA33-07E - Input Range: 0 to 5 A Output Range: 0 to 20 mA

DSCA

DSCA33Isolated True RMS Input Signal Conditioners
DSCA33-01Input Range: 0 to +100 mV Output Range: 0 to +10 V
DSCA33-01AInput Range: 0 to +100 mV Output Range: 0 to +5 V
DSCA33-01BInput Range: 0 to +100 mV Output Range: 0 to 1 mA
DSCA33-01CInput Range: 0 to +100 mV Output Range: 4 to 20 mA
DSCA33-01EInput Range: 0 to +100 mV Output Range: 0 to 20 mA
DSCA33-02Input Range: 0 to +1 V Output Range: 0 to +10 V
DSCA33-02AInput Range: 0 to +1 V Output Range: 0 to +5 V
DSCA33-02BInput Range: 0 to +1 V Output Range: 0 to 1 mA
DSCA33-02CInput Range: 0 to +1 V Output Range: 4 to 20 mA
DSCA33-02EInput Range: 0 to +1 V Output Range: 0 to 20 mA
DSCA33-03Input Range: 0 to +10 V Output Range: 0 to +10 V
DSCA33-03AInput Range: 0 to +10 V Output Range: 0 to +5 V
DSCA33-03BInput Range: 0 to +10 V Output Range: 0 to 1 mA
DSCA33-03CInput Range: 0 to +10 V Output Range: 4 to 20 mA
DSCA33-03EInput Range: 0 to +10 V Output Range: 0 to 20 mA
DSCA33-04Input Range: 0 to +150 V Output Range: 0 to +10 V
DSCA33-04AInput Range: 0 to +150 V Output Range: 0 to +5 V
DSCA33-04BInput Range: 0 to +150 V Output Range: 0 to 1 mA
DSCA33-04CInput Range: 0 to +150 V Output Range: 4 to 20 mA
DSCA33-04EInput Range: 0 to +150 V Output Range: 0 to 20 mA
DSCA33-05Input Range: 0 to 300 V Output Range: 0 to +10 V
DSCA33-05AInput Range: 0 to 300 V Output Range: 0 to +5 V
DSCA33-05BInput Range: 0 to 300 V Output Range: 0 to 1 mA
DSCA33-05CInput Range: 0 to 300 V Output Range: 4 to 20 mA
DSCA33-05EInput Range: 0 to 300 V Output Range: 0 to 20 mA
DSCA33-06Input Range: 0 to 1 A Output Range: 0 to +10 V
DSCA33-06AInput Range: 0 to 1 A Output Range: 0 to +5 V
DSCA33-06BInput Range: 0 to 1 A Output Range: 0 to 1 mA
DSCA33-06CInput Range: 0 to 1 A Output Range: 4 to 20 mA
DSCA33-06EInput Range: 0 to 1 A Output Range: 0 to 20 mA
DSCA33-07Input Range: 0 to 5 A Output Range: 0 to +10 V
DSCA33-07AInput Range: 0 to 5 A Output Range: 0 to +5 V
DSCA33-07BInput Range: 0 to 5 A Output Range: 0 to 1 mA
DSCA33-07CInput Range: 0 to 5 A Output Range: 4 to 20 mA
DSCA33-07EInput Range: 0 to 5 A Output Range: 0 to 20 mA
