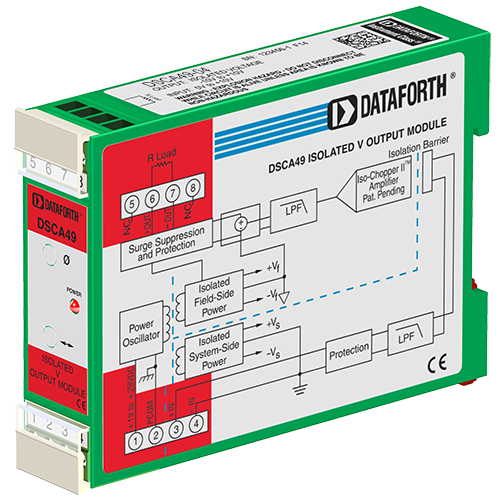

DSCA49 - Voltage Output Signal Conditioners

Main features

  • Accepts High-Level Voltage Input
  • Provides High-Level Voltage Outputs to ±10V at 50mA
  • ANSI/IEEE C37.90.1 Transient Protection
  • 1500Vrms Transformer Isolation
  • ±0.05% Accuracy
  • ±0.02% Linearity
  • Output Protected to 240VAC Continuous
  • True 3-Way Isolation
  • Wide Range of Supply Voltage
  • 100dB CMR
  • Easily Mounts on Standard DIN Rail
  • C-UL-US Listed
  • CE and ATEX Compliant
Price request Datasheet

Each DSCA49 voltage output module provides a single channel of analog output. The input signal is buffered, isolated, filtered and converted to a voltage output. Signal filtering is accomplished with a five-pole filter which provides 100dB per decade of attenuation above 1kHz. An anti-aliasing pole is located on the system side of the isolation barrier, and the other four poles are on the field side. After the initial system-side filtering, the input signal is chopped by a proprietary chopper circuit. Isolation is provided by transformer coupling, again using a proprietary technique to suppress transmission of common mode spikes or surges.

Special output circuits provide protection against accidental connection of power-line voltages up to 240VAC and against transient events as defined by ANSI/IEEE C37.90.1. Protection circuits are also present on the signal input and power input terminals to guard against transient events and power reversal. Signal and power lines are secured to the module using screw terminals which are in pluggable terminal blocks for ease of system assembly and reconfiguration.

The modules have excellent stability over time and do not require recalibration, however, zero and span settings are adjustable up to ±5% to accommodate situations where fine-tuning is desired. The adjustments are made using potentiometers located under the front panel label and are non-interactive for ease of use.

DSCA49-04 - Input Range: 0 to +10V Output Range: -10 to +10V


DSCA49-05 - Input Range: -10 to +10V Output Range: -10 to +10V


DSCA49-06 - Input Range: -10 to +10V Output Range: 0 to +10V


DSCA49Voltage Output Signal Conditioners
DSCA49-04Input Range: 0 to +10V Output Range: -10 to +10V
DSCA49-05Input Range: -10 to +10V Output Range: -10 to +10V
DSCA49-06Input Range: -10 to +10V Output Range: 0 to +10V
