EON - 12-Bit High-Speed data acquisition boards

Main features

  • 1 or 2 digitizing channels
  • Up to 2 GS/s maximum sampling per channel
  • 12 bits vertical resolution
  • 128 MS to 2 GS on-board acquisition memory
  • 500 MHz bandwidth
  • Frequency Response Flat with ±0.5 dB up to 350 MHz
  • Full-featured front-end, with software control over input ranges, coupling and filters
  • Synchronize up to 8 cards in a Master/Slave mode
  • Low power consumption (15 Watts typical)
  • 32 bits, 66 MHz PCI standard for 200 MB/s transfer to PC memory
  • Ease of integration with External or Reference Clock In and Clock Out, External Trigger In and Trigger Out
  • Programming-free operation with GageScope® oscilloscope software
  • Software Development Kits available for LabVIEW, MATLAB, C/C#
Clear
Price request Datasheet

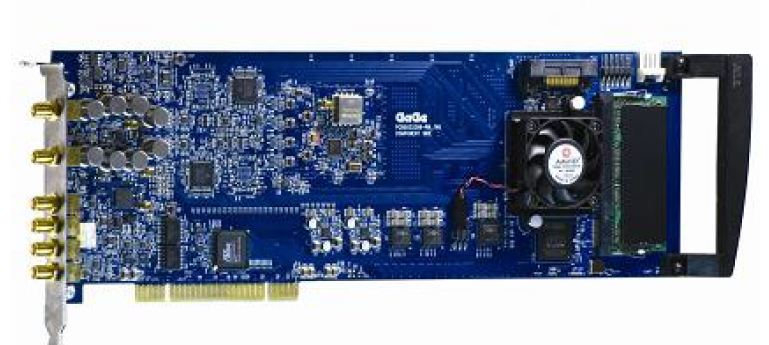

The high speed data acquisition boards 12-bit CompuScope EON provide the highest available Effective Number of Bits (ENOB (SINAD)) performance at high signal frequency that is available on the market.

The CompuScope EON PCI bus digitizer features 12-bit vertical resolution, up to 2 GS/s sampling, and high 500MHz bandwidth.
The fast sampling rate enables the capture of high-speed signals with ultra-high timing precision. The high resolution allows the capture of signals with very high dynamic range. Now available with up to 2 GS of on-board memory.

GaGe eXpert™ advanced on-board FPGA technology, such as Signal Averaging, is also available. Try our GageScope® Windows-based oscilloscope software for programming-free operation or one of our Software Development Kits for C/C#, LabVIEW or MATLAB for custom development.

EON-121-G10 - CS121G1 (1 channel, 12-bit, 1 GS/s, 128MS)

EON

EON-121-G20 - CS121G2 (2 channel, 12-bit, 1 GS/s, 128MS)

EON

EON-122-G10 - CS122G1 (1 channel, 12-bit, 2 GS/s, 128MS)

EON

EON-181-001 - Memory Upgrade 128MS to 256MS

EON

EON-181-003 - Memory Upgrade 128MS to 512MS

EON

EON-181-005 - Memory Upgrade 128MS to 1GS

EON

EON-181-007 - Memory Upgrade 128MS to 2GS

EON

EON-181-101 - EON: Auxilary Input/Output Option

EON

EON-181-012 - EON: Master Multi-Card Upgrade

EON

EON-181-013 - EON: Slave Multi-Card Upgrade

EON

EON12-Bit High-Speed data acquisition boards
EON-121-G10CS121G1 (1 channel, 12-bit, 1 GS/s, 128MS)
EON-121-G20CS121G2 (2 channel, 12-bit, 1 GS/s, 128MS)
EON-122-G10CS122G1 (1 channel, 12-bit, 2 GS/s, 128MS)
EON-181-001Memory Upgrade 128MS to 256MS
EON-181-003Memory Upgrade 128MS to 512MS
EON-181-005Memory Upgrade 128MS to 1GS
EON-181-007Memory Upgrade 128MS to 2GS
EON-181-101EON: Auxilary Input/Output Option
EON-181-012EON: Master Multi-Card Upgrade
EON-181-013EON: Slave Multi-Card Upgrade
