FDC3302e - High performance frequency distribution chassis

Main features

  • Single Input or Autoswitching Between Dual Inputs
  • 10-Channel, Broadband (100 kHz to 30 MHz) Sine Wave Distribution
  • Very Low Added Phase Noise
  • High Port-to-Port Isolation
  • Very Low Distortion
  • RS-232 Port for Control and Monitoring
  • Dual-Redundant AC or DC Power Supply
  • Ethernet Port for Remote Control and Monitoring
Price request Datasheet Ask a question

 For Distributing High-Range Frequency Sinewaves (100 kHz to 30 MHz)

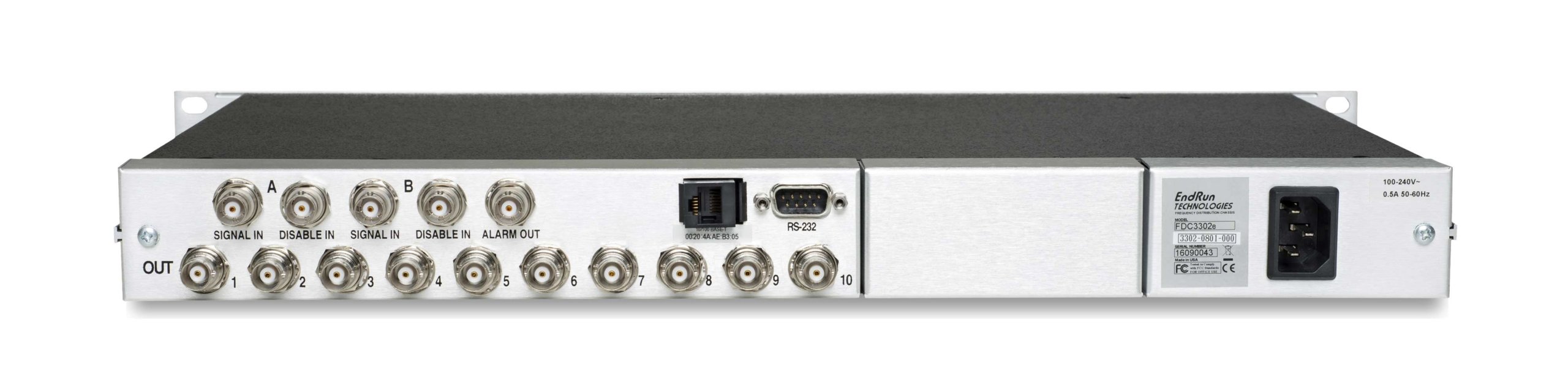

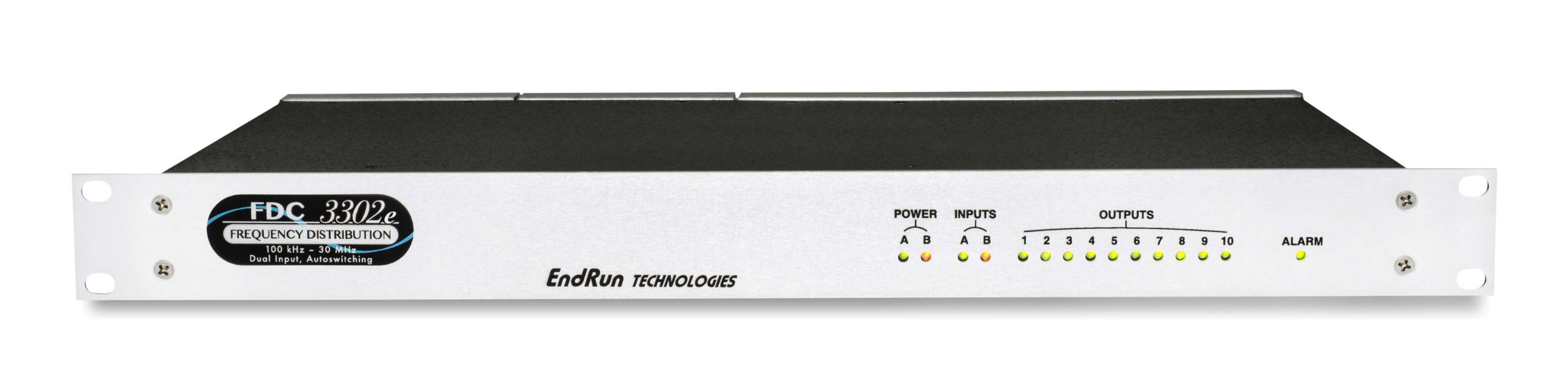

EndRun Technologies Frequency Distribution Chassis is a ten-channel, RF distribution amplifier in a 1U rackmount chassis.  It provides ten isolated copies of an input signal.  Fault sensing of signal levels is provided on all inputs and outputs, and fault status is easily visible via front-panel LED indicators.  Features are:

EndRun Technologies also has a lower-cost Frequency Distribution Chassis with reduced isolation and phase noise performance and an upper frequency limit of 10 MHz.

3302-0801-000 High performance frequency distribution chassis
